Product Model
qsc-10h-50
Selling Points

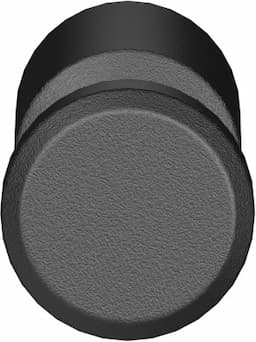

- 1Standard Size and Design: The Festo QSC-10H-50 Blanking Plug is available in a standard size, ensuring compatibility with various pneumatic systems. Its blanking plug design provides a secure and reliable connection.
- 2Optional Mounting Position: This product offers an optional mounting position, allowing for flexible installation in different applications. This feature enhances its versatility and usability.
- 3Operating Pressure Range: The QSC-10H-50 operates within a comprehensive temperature-dependent pressure range, from -0.095 MPa to 1.4 MPa, making it suitable for various operating conditions.
- 4Corrosion Resistance and Cleanroom Compatibility: The plug is made from RoHS-compliant PBT material, offering low corrosion stress and conformity to LABS (PWIS) standards. It is also compatible with cleanroom environments, adhering to ISO 14644-1.
- 5Compact and Lightweight: Weighing only 2 grams, the QSC-10H-50 is a compact and lightweight solution for pneumatic connections, making it ideal for space-constrained applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Mounting position | Any |
Design | Blanking plug | Pack size | 50 |
Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Statically installed element, no meaningful evaluation possible according to ISO 14644-1 |
Ambient temperature | -10°C 80°C | Product weight | 2g |
Pneumatic connection 1 | Push-in sleeve ? 10 mm | Note on materials | RoHS-compliant |
Housing material | PBT | Manufacturer ID | 130702 |
Specifications may be subject to change without notice
