Product Model

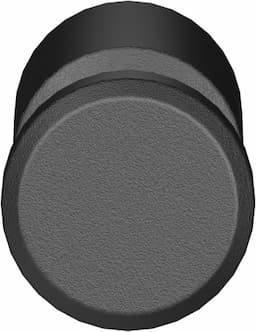

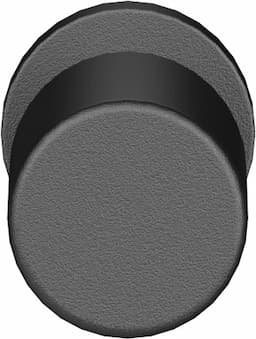

qsc-12h-20
Selling Points
- 1The QSC-12H-20 can be assembled in any position, making it highly adaptable to different installation requirements.
- 2This blanking plug comes in a standard size with a container size of 20, ensuring compatibility with a wide range of pneumatic systems.
- 3The QSC-12H-20 operates within a pressure range of -0.95 to 6 bar, and up to 14 bar under temperature-dependent conditions, providing robust performance.
- 4Made from Polybutylene Terephthalate (PBT), this plug conforms to RoHS standards and has a low corrosion resistance classification (CRC 1), ensuring durability.
- 5The QSC-12H-20 supports lubricated operation, enhancing its performance and longevity in various pneumatic applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Mounting position | Any |
Design | Blanking plug | Pack size | 20 |
Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Statically installed element, no meaningful evaluation possible according to ISO 14644-1 |
Ambient temperature | -10°C 80°C | Product weight | 2.5g |
Pneumatic connection 1 | Push-in sleeve ? 12 mm | Note on materials | RoHS-compliant |
Housing material | PBT | Manufacturer ID | 130703 |
Specifications may be subject to change without notice
