Product Model
qsc-16h
Selling Points

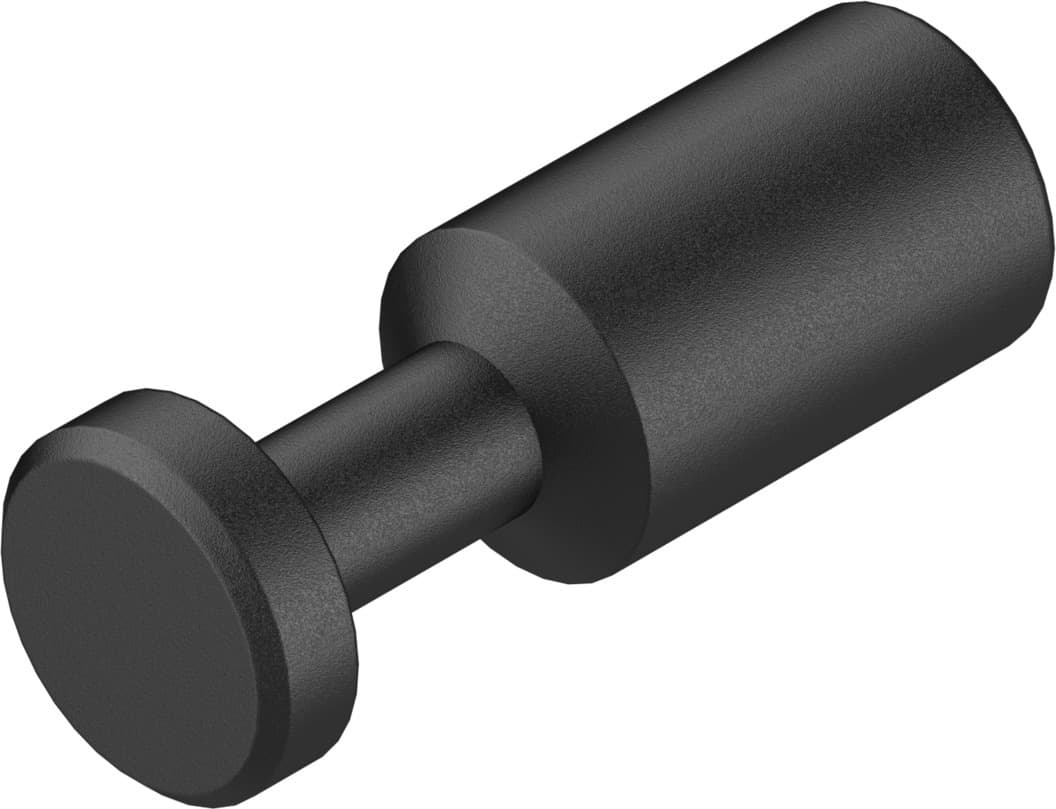

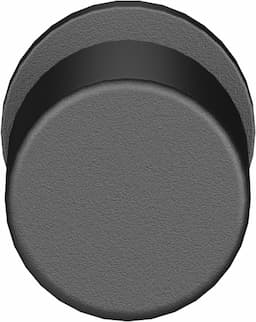

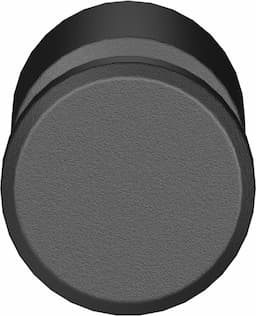

- 1The Festo QSC-16H Blanking Plug is designed for standard pneumatic applications, offering a push-in sleeve fitting that can be used in any assembly position.
- 2This plug operates within a temperature range of -10°C to 80°C and supports both compressed air and water, conforming to ISO8573-1:2010 standards.
- 3The QSC-16H features a corrosion resistance classification of CRC 1, indicating low corrosion stress, making it suitable for various environments.
- 4The plug is made from PBT material and complies with RoHS regulations, ensuring environmental sustainability.
- 5With an operating pressure range of -0.95 to 6 bar and temperature-dependent pressure up to 14 bar, the QSC-16H is highly adaptable to different pneumatic systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Mounting position | Any |
Design | Blanking plug | Pack size | 1 |
Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Statically installed element, no meaningful evaluation possible according to ISO 14644-1 |
Ambient temperature | -10°C 80°C | Product weight | 4g |
Pneumatic connection 1 | Push-in sleeve ? 16 mm | Note on materials | RoHS-compliant |
Housing material | PBT | Manufacturer ID | 153272 |
Specifications may be subject to change without notice
