Product Model

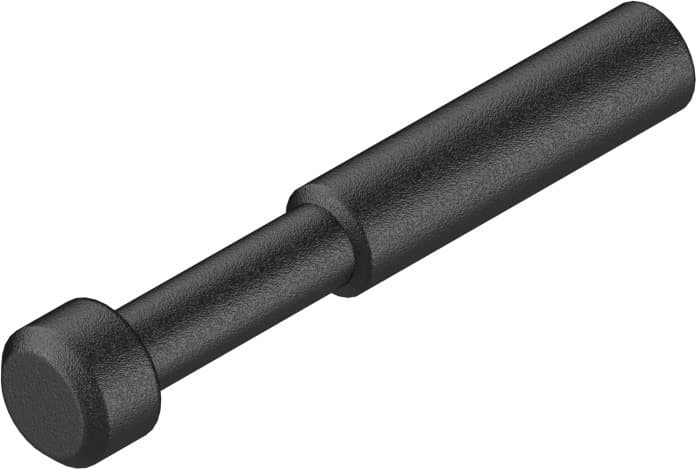

qsc-4h-100
Selling Points
- 1The Festo QSC-4H-100 blanking plug offers a wide operating pressure range of -0.095 MPa to 0.6 MPa, making it suitable for various pneumatic applications.
- 2This plug is designed for use with compressed air to ISO 8573-1:2010 and water, ensuring compatibility with different operating mediums.
- 3The QSC-4H-100 features low corrosion stress (CRC 1) and is RoHS-compliant, ensuring durability and environmental sustainability.
- 4The plug can operate in a temperature range of -10 °C to 80 °C, providing flexibility in different ambient conditions.
- 5With a product weight of 0.5 g and a push-in sleeve Ø 4 mm, the QSC-4H-100 is lightweight and easy to install, enhancing user convenience.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Mounting position | Any |
Design | Blanking plug | Pack size | 100 |
Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Statically installed element, no meaningful evaluation possible according to ISO 14644-1 |
Ambient temperature | -10°C 80°C | Product weight | 0.5g |
Pneumatic connection 1 | Push-in sleeve ? 4 mm | Note on materials | RoHS-compliant |
Housing material | PBT | Manufacturer ID | 130699 |
Specifications may be subject to change without notice
