Product Model
qsc-6h-100
Selling Points

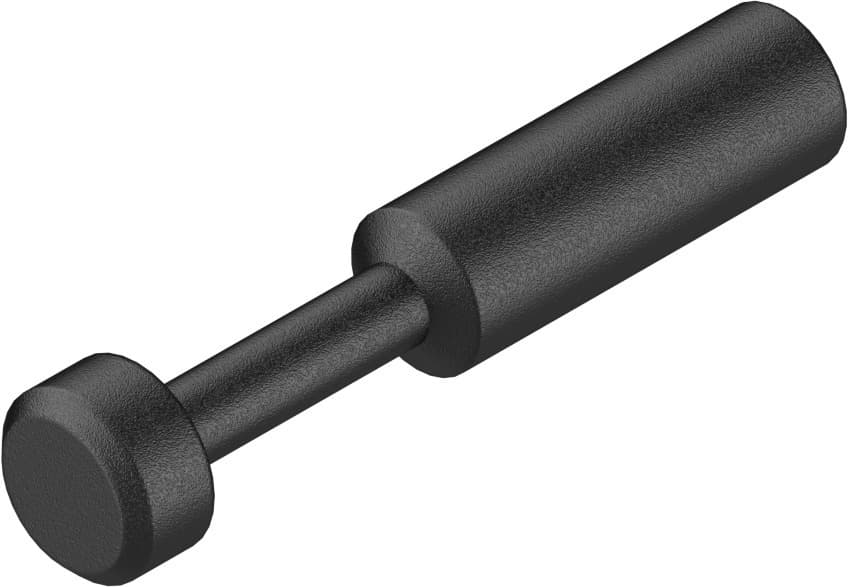

- 1The Festo QSC-6H-100 blanking plug is designed for use with compressed air and vacuum, ensuring reliable operation in various industrial settings.
- 2This plug features a wide operating pressure range of -0.95 to 6 bar, with a temperature-dependent operating pressure of up to 14 bar, making it versatile for different applications.
- 3Made from high-quality Polybutylene Terephthalate (PBT), the QSC-6H-100 offers excellent corrosion resistance, classified as CRC 1, ensuring long-lasting performance in harsh environments.
- 4The plug is compatible with 6mm push-in sleeve connectors and is RoHS-compliant, meeting international standards for environmental safety.
- 5Available in packs of 100 units, the QSC-6H-100 is an economical solution for bulk purchases, suitable for various pneumatic system applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Mounting position | Any |
Design | Blanking plug | Pack size | 100 |
Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Statically installed element, no meaningful evaluation possible according to ISO 14644-1 |
Ambient temperature | -10°C 80°C | Product weight | 0.5g |
Pneumatic connection 1 | Push-in sleeve ? 6 mm | Note on materials | RoHS-compliant |
Housing material | PBT | Manufacturer ID | 130700 |
Specifications may be subject to change without notice
