Product Model

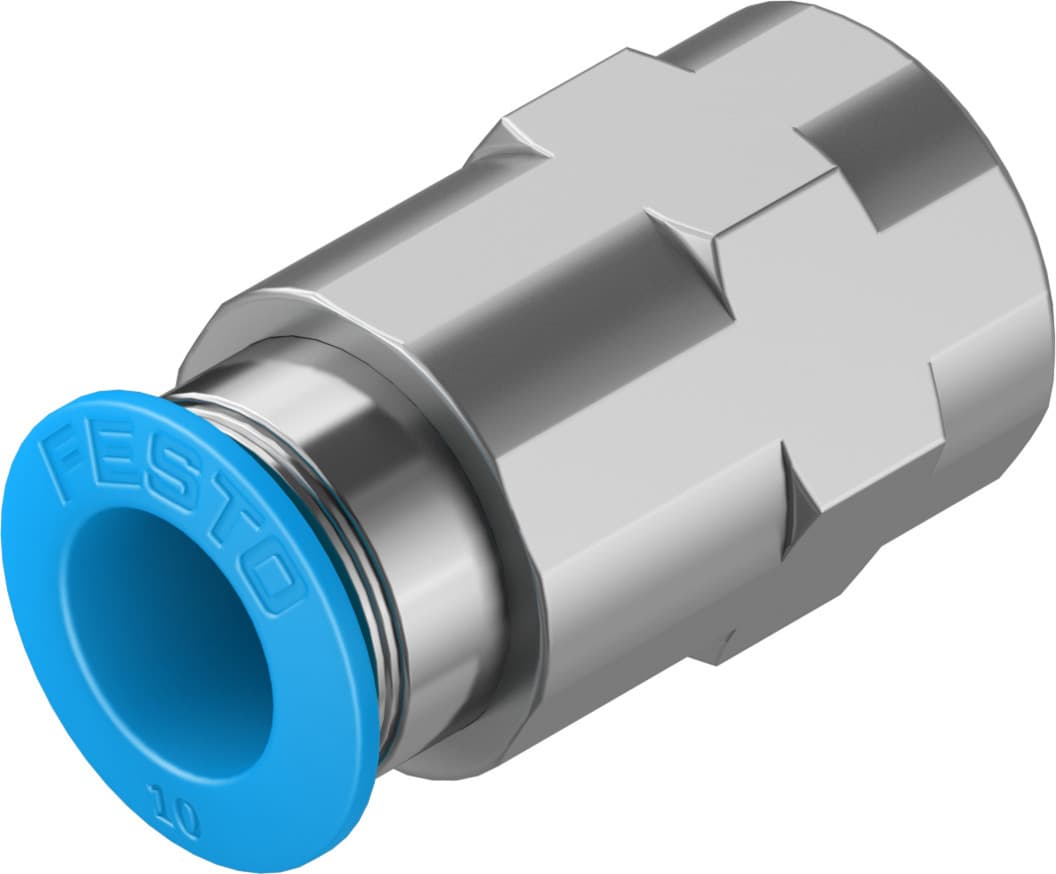

qsf-1/4-10-b
Selling Points
- 1The Festo QSF-1/4-10-B push-in fitting is designed for secure connections with pneumatic tubing, ensuring reliable operation in various applications.
- 2This fitting features a brass, nickel-plated housing, providing excellent corrosion resistance and durability.
- 3The QSF-1/4-10-B supports operating pressures up to 14 bar and operates within a temperature range of -10°C to 80°C, making it versatile for different environments.
- 4The push-in fitting is RoHS compliant and meets environmental regulations, ensuring it is safe for use in various industrial settings.
- 5With a weight of 30 grams and a compact design, the QSF-1/4-10-B is easy to handle and integrate into pneumatic systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 9mm |
Type of seal on screwed plug | Coating | Mounting position | Any |
Design | Straight design | Pack size | 10 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -10°C 80°C | Nominal tightening torque | 9Nm |
Tolerance for nominal tightening torque | ± 20% | Product weight | 30g |
Type of mounting | External hexagon, AF 17 | Pneumatic connection 1 | Internal thread G1/4 |
Pneumatic connection 2 | for pneumatic tubing outside diameter 10 mm | Releasing ring color | Blue |
Note on materials | RoHS-compliant | Housing material | Brass, nickel-plated |
Releasing ring material | POM | Material of tubing seal | NBR |
Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 153028 |
