Product Model

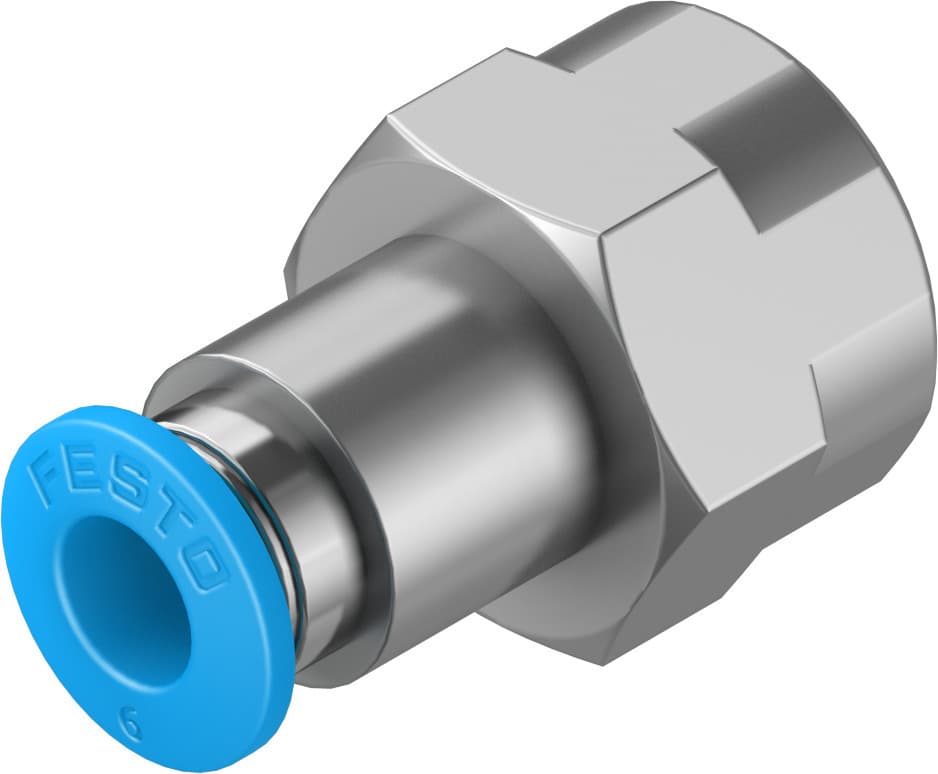

qsf-1/4-6-b-100
Selling Points
- 1The Festo QSF-1/4-6-B-100 is a high-quality pneumatic fitting designed for compressed air applications, ensuring reliable and efficient operation in various environments.
- 2With a nominal size of 5 mm and a standard design, this fitting is ideal for use in pneumatic systems where precision and durability are crucial.
- 3The QSF-1/4-6-B-100 features a push-pull principle and a straight design, making it easy to assemble and use in both manual and automated systems.
- 4This fitting is compatible with compressed air according to ISO 8573-1:2010 and can also handle water under specific conditions, making it versatile for different applications.
- 5The QSF-1/4-6-B-100 is made from high-quality materials, including brass with a nickel plating, POM for the release ring, and NBR for the tubing seal, ensuring low corrosion stress and long-lasting performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 5mm |
Type of seal on screwed plug | Coating | Mounting position | Any |
Design | Straight design | Pack size | 100 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 4 according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
Nominal tightening torque | 9Nm | Tolerance for nominal tightening torque | ± 20% |
Product weight | 23g | Type of mounting | External hexagon, AF 17 |
Pneumatic connection 1 | Internal thread G1/4 | Pneumatic connection 2 | for pneumatic tubing outside diameter 6 mm |
Releasing ring color | Blue | Note on materials | RoHS-compliant |
Housing material | Brass, nickel-plated | Releasing ring material | POM |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 130712 |
Specifications may be subject to change without notice
