Product Model

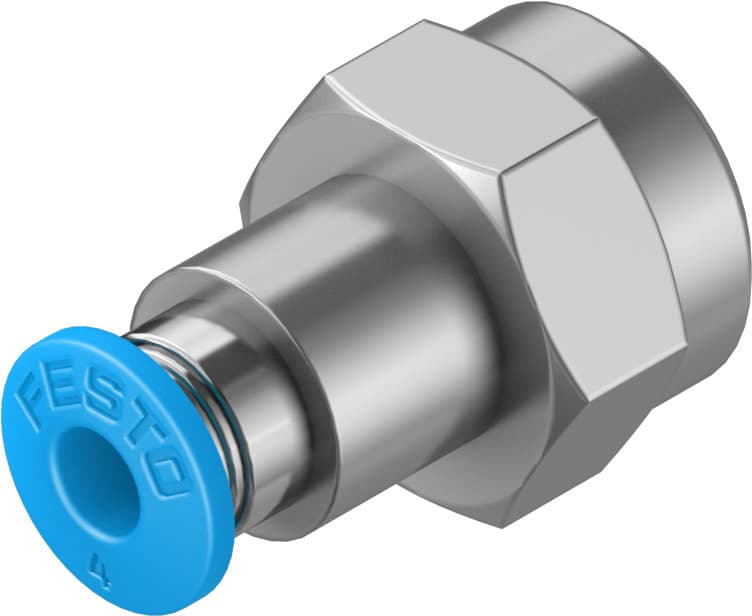

qsf-1/8-4-b
Selling Points
- 1The QSF-1/8-4-B push-in fitting ensures that air flows efficiently through pneumatic systems, minimizing leaks and ensuring reliable operation.
- 2This fitting is suitable for both compressed air and water applications, making it a versatile choice for various pneumatic systems.
- 3With a corrosion resistance classification of CRC 1, the QSF-1/8-4-B can withstand low corrosion stress, ensuring durability in harsh environments.
- 4The push-pull principle design makes installation quick and easy, reducing setup time and increasing productivity.
- 5The QSF-1/8-4-B meets ISO8573-1:2010 standards for compressed air and is RoHS-compliant, ensuring it meets international quality and safety standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 3mm |
Type of seal on screwed plug | Coating | Mounting position | Any |
Design | Straight design | Pack size | 10 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -10°C 80°C | Nominal tightening torque | 7Nm |
Tolerance for nominal tightening torque | ± 20% | Product weight | 13g |
Type of mounting | External hexagon, AF 14 | Pneumatic connection 1 | Internal thread G1/8 |
Pneumatic connection 2 | for pneumatic tubing outside diameter 4 mm | Releasing ring color | Blue |
Note on materials | RoHS-compliant | Housing material | Brass, nickel-plated |
Releasing ring material | POM | Material of tubing seal | NBR |
Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 153022 |
Specifications may be subject to change without notice
