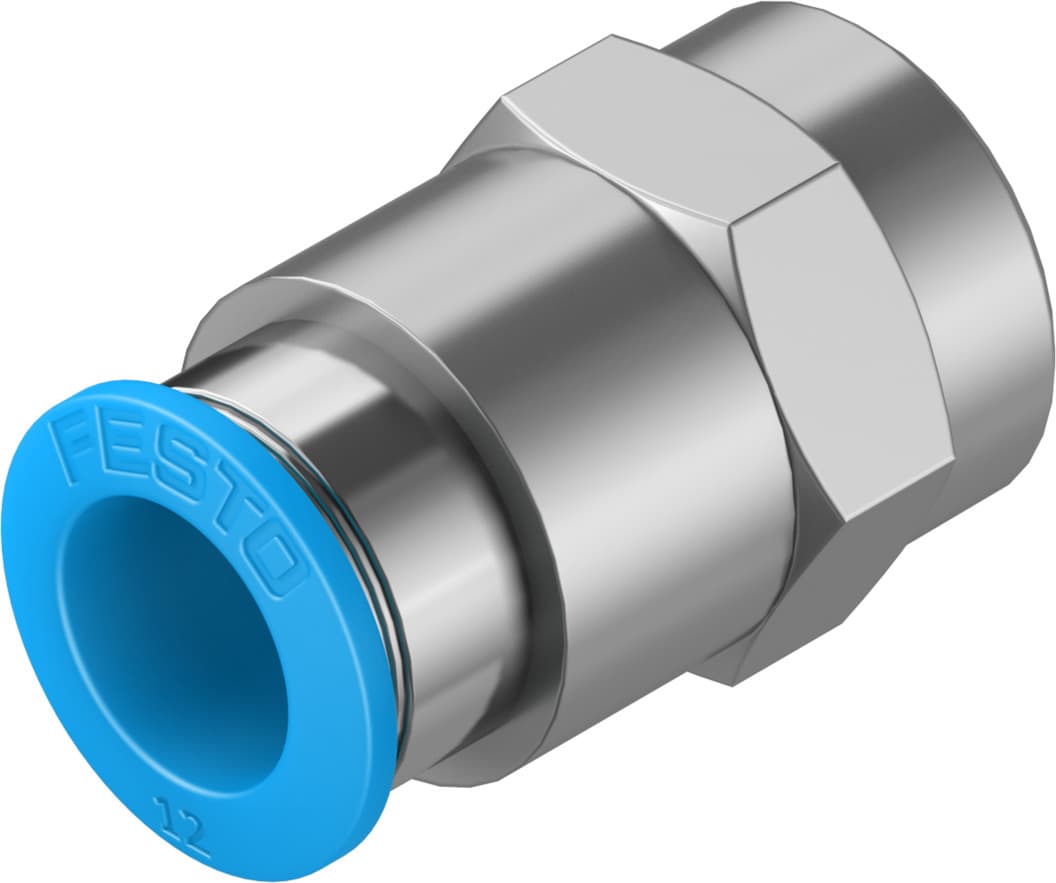

Product Model
qsf-3/8-12-b-20
Selling Points
- 1The Festo QSF-3/8-12-B-20 push-in fitting ensures a secure and leak-free connection for your pneumatic systems, making it ideal for various industrial applications.
- 2With a standard nominal size of 11 mm and a push-pull principle, this fitting can be mounted in any position, offering flexibility in your system design.
- 3Operating pressure ranges from -0.95 to 6 bar, and up to 14 bar under temperature-dependent conditions, making it suitable for demanding applications.
- 4Constructed from nickel-plated brass, this fitting exhibits low corrosion stress (CRC 1), ensuring durability in harsh environments.
- 5Meets ISO 8573-1:2010 for compressed air and manufacturer's declaration for water usage, ensuring compliance with industry standards for operating media.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 11mm |
Type of seal on screwed plug | Coating | Mounting position | Any |
Design | Straight design | Pack size | 20 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 4 according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
Nominal tightening torque | 15.5Nm | Tolerance for nominal tightening torque | ± 20% |
Product weight | 46g | Type of mounting | External hexagon, AF 21 |
Pneumatic connection 1 | Internal thread G3/8 | Pneumatic connection 2 | for pneumatic tubing outside diameter 12 mm |
Releasing ring color | Blue | Note on materials | RoHS-compliant |
Housing material | Brass, nickel-plated | Releasing ring material | POM |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 130717 |
