Product Model

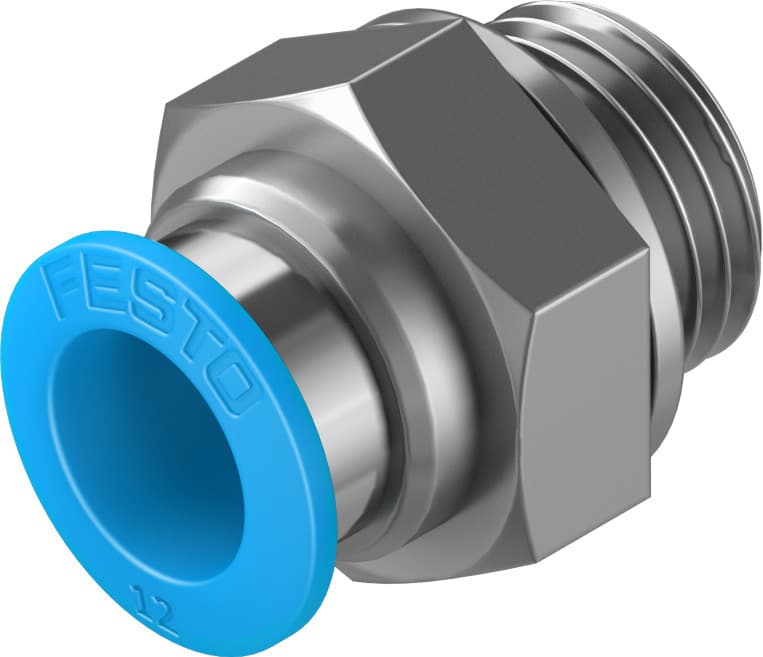

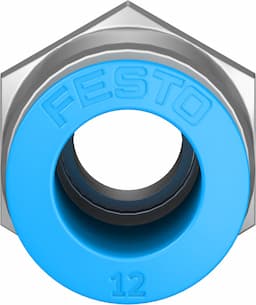

qs-g1/2-12-20
Selling Points
- 1The QS-G1/2-12-20 is made from brass with a nickel-plated body, ensuring durability and resistance to corrosion. The release ring is made from POM, and the tubing seal is NBR, providing excellent sealing properties.
- 2This push-in fitting features a push-pull principle and can be mounted in any position, making it versatile for various pneumatic applications. It includes a male thread G1/2 for the inlet and a 12mm push-in connector for the outlet.
- 3The QS-G1/2-12-20 operates within a wide temperature range of -10°C to 80°C and supports pressures from -0.95 bar to 6 bar, with temperature-dependent operating pressures up to 14 bar.
- 4The fitting's optimized bending radius makes it easy to install, reducing the risk of damage during assembly. The nominal tightening torque is 26 Nm with a tolerance of ±20%.
- 5The QS-G1/2-12-20 is compliant with ISO 8573-1:2010 for compressed air and meets RoHS standards, ensuring it is environmentally friendly. It also meets maritime classification requirements.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 11mm |
Type of seal on screwed plug | Sealing ring | Mounting position | Any |
Design | Straight design | Pack size | 20 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible Water: G-thread only possible with sealing ring type OL as additional accessory |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 4 according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
Nominal tightening torque | 26Nm | Tolerance for nominal tightening torque | ± 20% |
Product weight | 39g | Type of mounting | External hexagon, AF 24 |
Pneumatic connection 1 | External thread G1/2 | Pneumatic connection 2 | for pneumatic tubing outside diameter 12 mm |
Releasing ring color | Blue | Note on materials | RoHS-compliant |
Housing material | Brass, nickel-plated | Releasing ring material | POM |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 132046 |
Specifications may be subject to change without notice
