Product Model

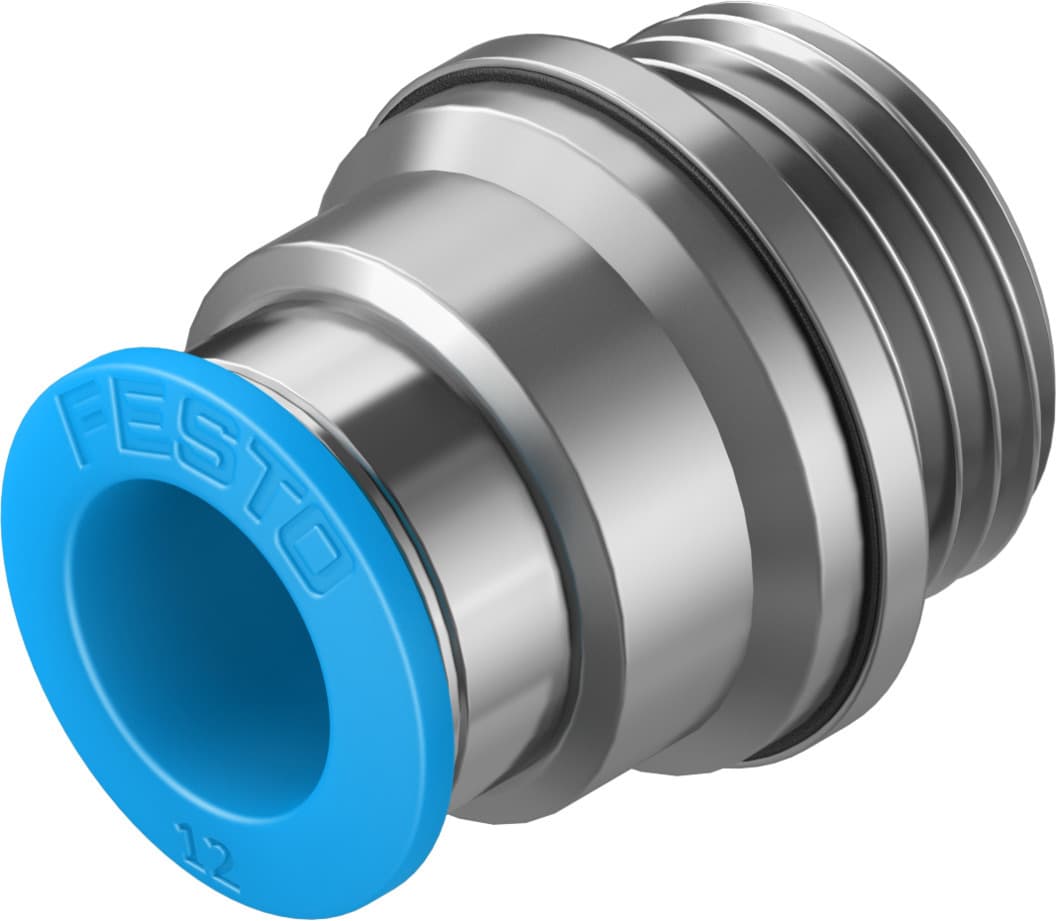

qs-g1/2-12-i
Selling Points
- 1The Festo QS-G1/2-12-I push-in fitting ensures secure and leak-free connections in pneumatic systems, making it ideal for various industrial applications.
- 2Made from nickel-plated brass, this fitting offers high corrosion resistance and durability, ensuring long-lasting performance in harsh environments.
- 3The push-in design allows for quick and effortless installation, reducing setup time and improving overall efficiency in your pneumatic setup.
- 4This fitting supports operating pressures up to 6 bar and ambient temperatures from -10°C to 80°C, making it versatile for a wide range of applications.
- 5Equipped with a sealing ring, the QS-G1/2-12-I ensures tight seals and prevents leaks, maintaining the integrity of your pneumatic system.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 8.4mm |
Type of seal on screwed plug | Sealing ring | Mounting position | Any |
Design | Straight design | Pack size | 1 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible Water: G-thread only possible with sealing ring type OL as additional accessory |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -10°C 80°C | Nominal tightening torque | 26Nm |
Tolerance for nominal tightening torque | ± 20% | Product weight | 33g |
Type of mounting | Internal hexagon, AF 8 | Pneumatic connection 1 | External thread G1/2 |
Pneumatic connection 2 | for pneumatic tubing outside diameter 12 mm | Releasing ring color | Blue |
Note on materials | RoHS-compliant | Housing material | Brass, nickel-plated |
Releasing ring material | POM | Material of tubing seal | NBR |
Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 186115 |
Specifications may be subject to change without notice
