Product Model
qs-g1/4-10-i
Selling Points

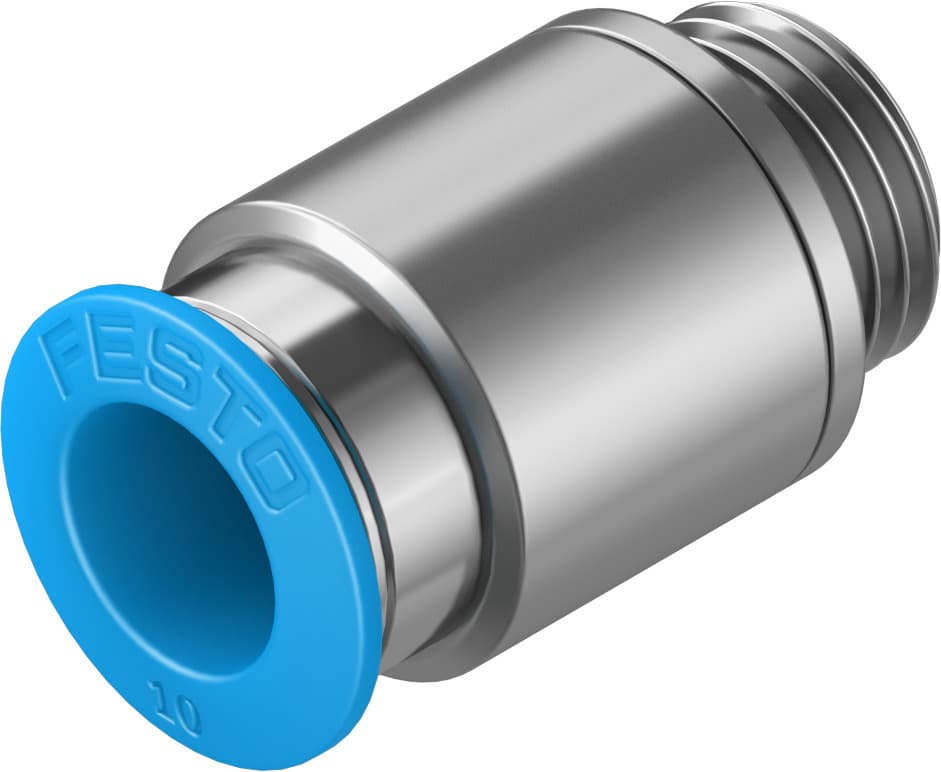

- 1The Festo QS-G1/4-10-I push-in fitting is designed with a standard straight male thread, ensuring easy and secure connections in pneumatic systems.
- 2This fitting features a 7.3 mm nominal size and a sealing ring for reliable sealing, making it suitable for a wide range of industrial applications.
- 3The QS-G1/4-10-I is constructed from nickel-plated brass, providing excellent durability and resistance to corrosion, ensuring long-lasting performance.
- 4With an operating temperature range of -10 to 80°C, this fitting can handle various environmental conditions, making it versatile for different industrial settings.
- 5Available in packs of 10, the QS-G1/4-10-I push-in fitting offers convenience and cost-effectiveness, ideal for bulk purchases and efficient inventory management.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 7.3mm |
Type of seal on screwed plug | Sealing ring | Mounting position | Any |
Design | Straight design | Pack size | 10 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible Water: G-thread only possible with sealing ring type OL as additional accessory |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -10°C 80°C | Nominal tightening torque | 9Nm |
Tolerance for nominal tightening torque | ± 20% | Product weight | 20g |
Type of mounting | Internal hexagon, AF 7 | Pneumatic connection 1 | External thread G1/4 |
Pneumatic connection 2 | for pneumatic tubing outside diameter 10 mm | Releasing ring color | Blue |
Note on materials | RoHS-compliant | Housing material | Brass, nickel-plated |
Releasing ring material | POM | Material of tubing seal | NBR |
Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 186112 |
Specifications may be subject to change without notice
