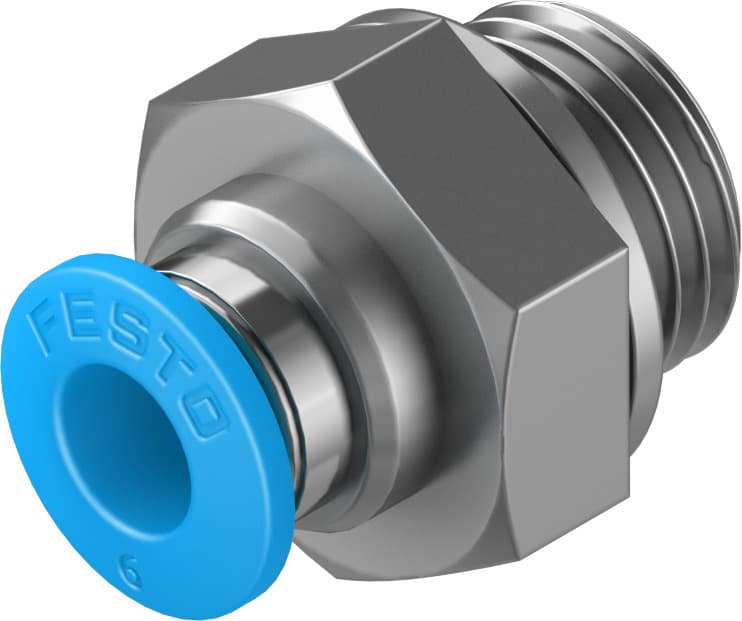

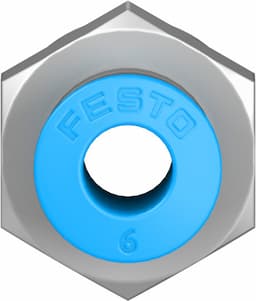

Product Model
qs-g1/4-6-100
Selling Points
- 1The Festo QS-G1/4-6-100 push-in fitting ensures a secure and leak-free connection for pneumatic systems, making it ideal for various industrial applications.
- 2This fitting supports operating pressures from -0.95 to 6 bar and temperatures from -10 to 80°C, providing flexibility in different environments.
- 3Featuring a push-pull principle, the QS-G1/4-6-100 is easy to install and use, reducing downtime and increasing productivity.
- 4Constructed from nickel-plated brass and POM (Polyoxymethylene) for the release ring, this fitting is RoHS-compliant and offers excellent corrosion resistance.
- 5With a product weight of 17 grams and a nominal tightening torque of 9 Nm, the QS-G1/4-6-100 is a compact yet robust solution for pneumatic connections.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 5mm |
Type of seal on screwed plug | Sealing ring | Mounting position | Any |
Design | Straight design | Pack size | 100 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible Water: G-thread only possible with sealing ring type OL as additional accessory |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 4 according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
Nominal tightening torque | 9Nm | Tolerance for nominal tightening torque | ± 20% |
Product weight | 17g | Type of mounting | External hexagon, AF 17 |
Pneumatic connection 1 | External thread G1/4 | Pneumatic connection 2 | for pneumatic tubing outside diameter 6 mm |
Releasing ring color | Blue | Note on materials | RoHS-compliant |
Housing material | Brass, nickel-plated | Releasing ring material | POM |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 132039 |
Specifications may be subject to change without notice
