Product Model
qs-g1/4-6-i
Selling Points

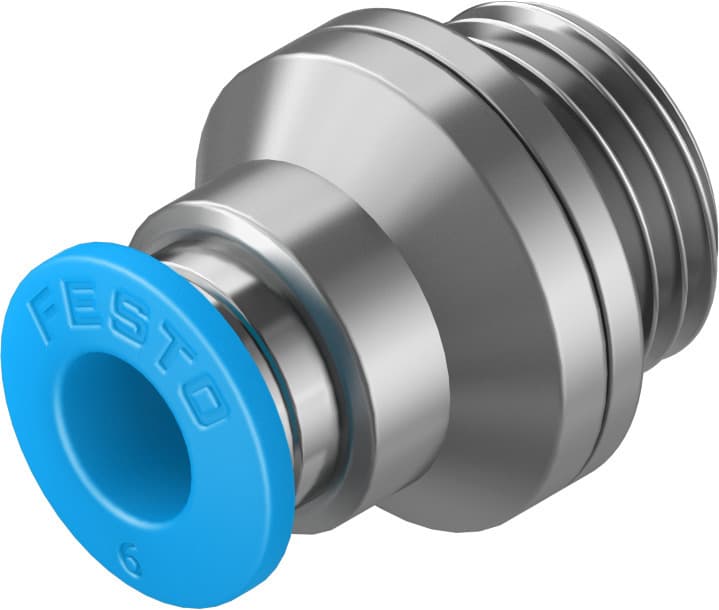

- 1The Festo QS-G1/4-6-I push-in fitting features a standard nominal width of 4.2 mm, ensuring precise and reliable connections in pneumatic systems.
- 2Equipped with a sealing ring on the screwed plug, this fitting provides excellent sealing performance and durability, minimizing leaks and ensuring smooth operation.
- 3The QS-G1/4-6-I is designed for versatile mounting positions, allowing for flexible installation in various pneumatic applications, including any orientation.
- 4Available in a pack size of 10 units, the QS-G1/4-6-I is convenient for bulk purchases and easy to manage in your inventory, making it ideal for both small and large-scale projects.
- 5With its straight design, the QS-G1/4-6-I push-in fitting offers easy handling and quick installation, reducing setup time and enhancing productivity in your pneumatic system.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 4.2mm |
Type of seal on screwed plug | Sealing ring | Mounting position | Any |
Design | Straight design | Pack size | 10 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible Water: G-thread only possible with sealing ring type OL as additional accessory |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -10°C 80°C | Nominal tightening torque | 9Nm |
Tolerance for nominal tightening torque | ± 20% | Product weight | 13g |
Type of mounting | Internal hexagon, AF 4 | Pneumatic connection 1 | External thread G1/4 |
Pneumatic connection 2 | for pneumatic tubing outside diameter 6 mm | Releasing ring color | Blue |
Note on materials | RoHS-compliant | Housing material | Brass, nickel-plated |
Releasing ring material | POM | Material of tubing seal | NBR |
Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 186108 |
Specifications may be subject to change without notice
