Product Model

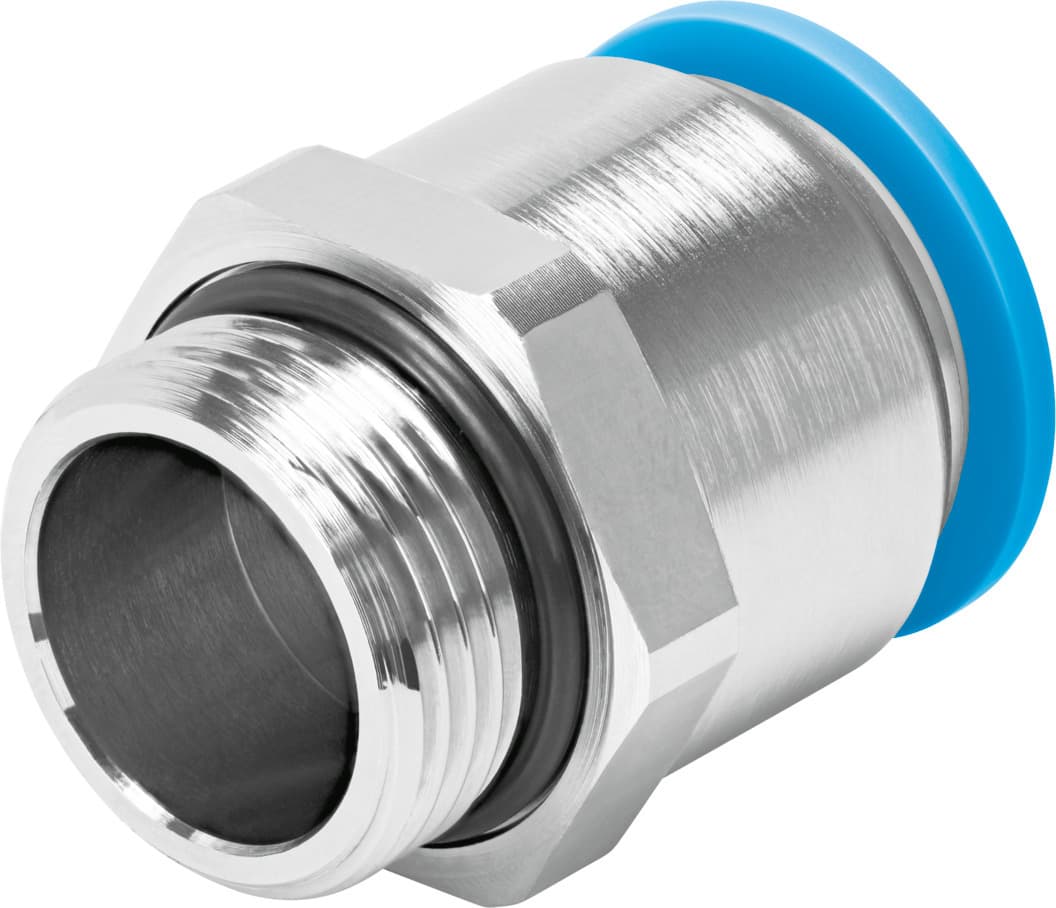

qs-g3/4-22
Selling Points
- 1Brass nickel-plated housing for high corrosion resistance.
- 2Suitable for compressed air and water applications as per ISO 8573-1:2010.
- 3Push-in fitting design allows for quick and secure connections.
- 4Operates from -20°C to 80°C, ensuring flexibility in various environments.
- 5Maximum operating pressure of 14 bar, ensuring consistent performance under pressure.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 20mm |
Type of seal on screwed plug | Sealing ring | Mounting position | Any |
Design | Straight design | Pack size | 1 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 203psi |
Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible Water: G-thread only possible with sealing ring type OL as additional accessory |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 4 according to ISO 14644-1 | Ambient temperature | -20°C 80°C |
Nominal tightening torque | 20Nm | Tolerance for nominal tightening torque | ± 20% |
Product weight | 90.5g | Type of mounting | External hexagon, AF 32 |
Pneumatic connection 1 | External thread G3/4 | Pneumatic connection 2 | for pneumatic tubing outside diameter 22 mm |
Releasing ring color | Blue | Note on materials | RoHS-compliant |
Housing material | Brass, nickel-plated | Releasing ring material | POM |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 8040613 |
Specifications may be subject to change without notice
