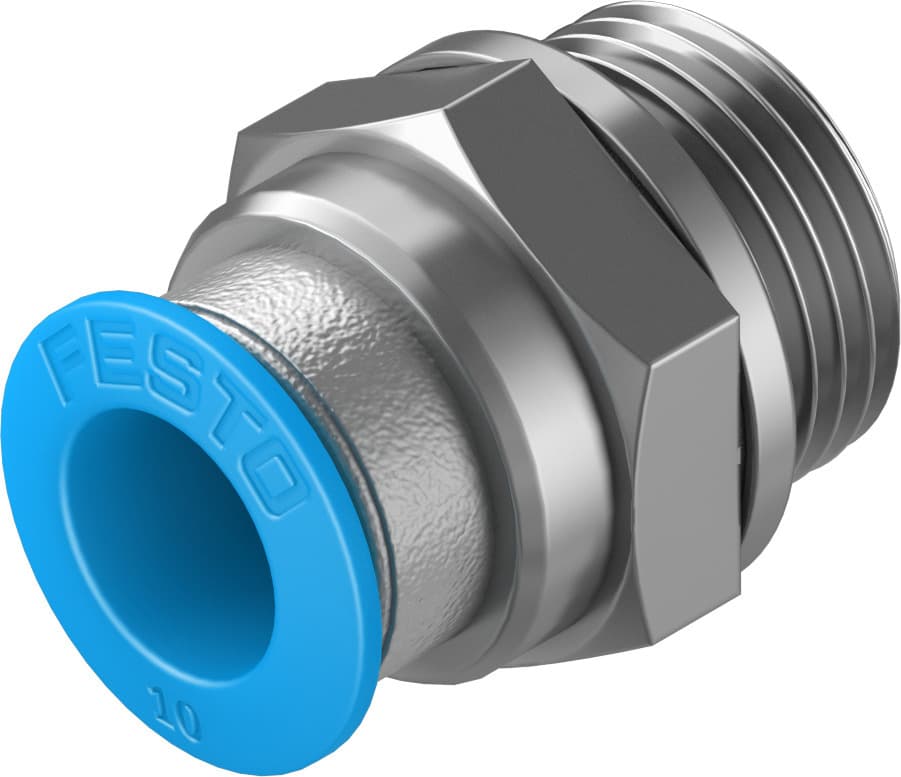

Product Model
qs-g3/8-10-50
Selling Points
- 1The Festo QS-G3/8-10-50 push-in fitting offers a wide operating pressure range of -0.95 to 6 bar, making it suitable for various pneumatic applications.
- 2This fitting features a push-pull principle for easy installation and disconnection, ensuring quick and efficient connections in automation systems.
- 3Constructed from high-quality materials, including brass and nickel-plated housing, POM sleeve, and NBR tube seal, ensuring durability and resistance to corrosion.
- 4The QS-G3/8-10-50 is designed for use with compressed air and water, meeting ISO 8573-1:2010 standards for compressed air and manufacturer's declaration for water usage.
- 5With a nominal width of 9 mm and a standard pack size of 50 pieces, this fitting is ideal for bulk applications in industrial automation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 9mm |
Type of seal on screwed plug | Sealing ring | Mounting position | Any |
Design | Straight design | Pack size | 50 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible Water: G-thread only possible with sealing ring type OL as additional accessory |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 4 according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
Nominal tightening torque | 15.5Nm | Tolerance for nominal tightening torque | ± 20% |
Product weight | 22g | Type of mounting | External hexagon, AF 19 |
Pneumatic connection 1 | External thread G3/8 | Pneumatic connection 2 | for pneumatic tubing outside diameter 10 mm |
Releasing ring color | Blue | Note on materials | RoHS-compliant |
Housing material | Brass, nickel-plated | Releasing ring material | POM |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 132044 |
