Product Model
qs-g3/8-10-i
Selling Points

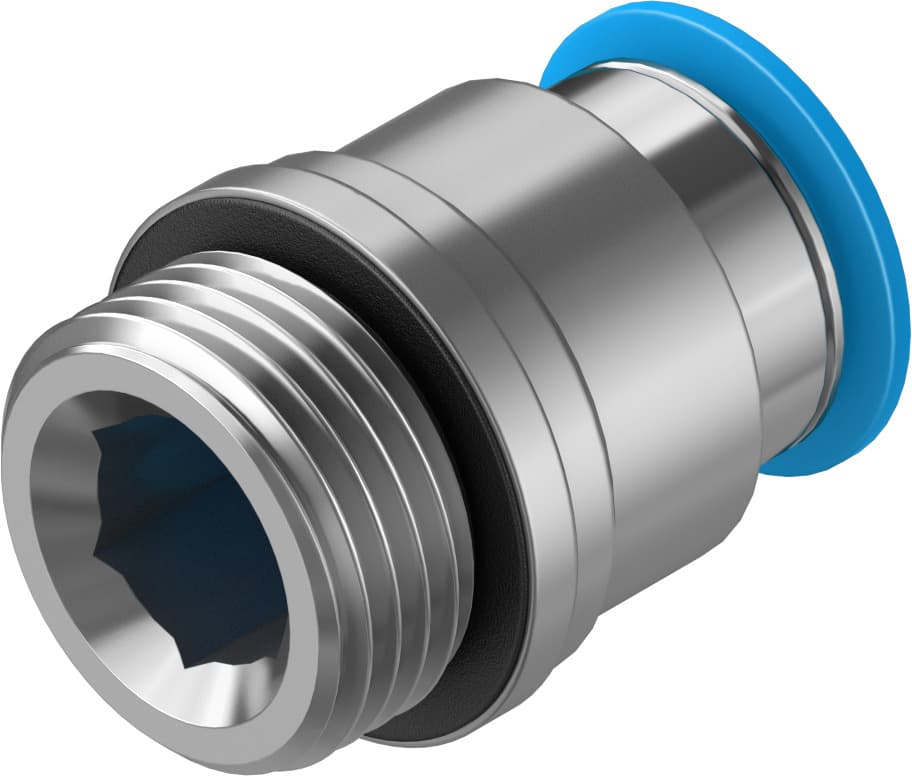

- 1The Festo QS-G3/8-10-I is a high-quality push-in fitting designed for pneumatic applications, ensuring reliable connections and efficient fluid transfer.
- 2This straight male fitting features a 3/8 inch BSPP (G) male connection on one end and a 10mm push-to-connect metric connection on the other, providing versatility in system design.
- 3Made from nickel-plated brass, the fitting offers excellent durability and resistance to corrosion, making it suitable for a wide range of operating conditions.
- 4The QS-G3/8-10-I operates within a temperature range of -10 to 80°C (-14 to 176°F), ensuring consistent performance in various environmental settings.
- 5With a sealing ring type seal on the screwed plug, this fitting provides a secure and leak-free connection, enhancing system reliability and safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 7.3mm |
Type of seal on screwed plug | Sealing ring | Mounting position | Any |
Design | Straight design | Pack size | 10 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible Water: G-thread only possible with sealing ring type OL as additional accessory |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -10°C 80°C | Nominal tightening torque | 15.5Nm |
Tolerance for nominal tightening torque | ± 20% | Product weight | 22g |
Type of mounting | Internal hexagon, AF 7 | Pneumatic connection 1 | External thread G3/8 |
Pneumatic connection 2 | for pneumatic tubing outside diameter 10 mm | Releasing ring color | Blue |
Note on materials | RoHS-compliant | Housing material | Brass, nickel-plated |
Releasing ring material | POM | Material of tubing seal | NBR |
Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 186113 |
Specifications may be subject to change without notice
