Product Model
qs-g3/8-12-20
Selling Points

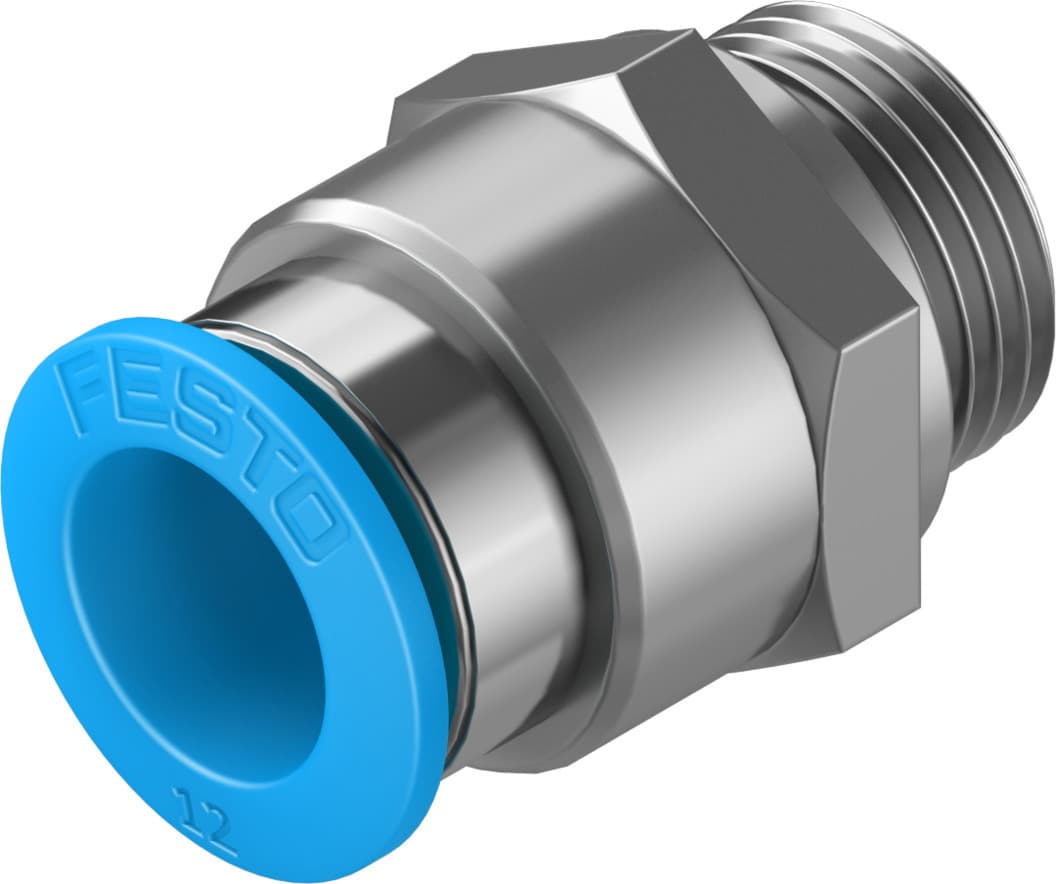

- 1The Festo QS-G3/8-12-20 push-in fitting is designed with a straight design and features a sealing ring for reliable sealing, ensuring high-performance in pneumatic applications.
- 2This fitting operates within a wide temperature range of -10°C to 80°C and supports operating pressures from -0.95 bar to 6 bar, making it versatile for various industrial settings.
- 3The QS-G3/8-12-20 is constructed from nickel-plated brass, providing excellent corrosion resistance and durability, classified as CRC 1 - Low corrosion stress.
- 4The fitting is compatible with compressed air as per ISO 8573-1:2010 and can also operate with water, but only with the OL sealing ring for G-thread connections.
- 5With a nominal tightening torque of 15.5 Nm and a weight of 33 grams, the QS-G3/8-12-20 is easy to install and manage in various pneumatic systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 11mm |
Type of seal on screwed plug | Sealing ring | Mounting position | Any |
Design | Straight design | Pack size | 20 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible Water: G-thread only possible with sealing ring type OL as additional accessory |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 4 according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
Nominal tightening torque | 15.5Nm | Tolerance for nominal tightening torque | ± 20% |
Product weight | 33g | Type of mounting | External hexagon, AF 21 |
Pneumatic connection 1 | External thread G3/8 | Pneumatic connection 2 | for pneumatic tubing outside diameter 12 mm |
Releasing ring color | Blue | Note on materials | RoHS-compliant |
Housing material | Brass, nickel-plated | Releasing ring material | POM |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 132045 |
