Product Model

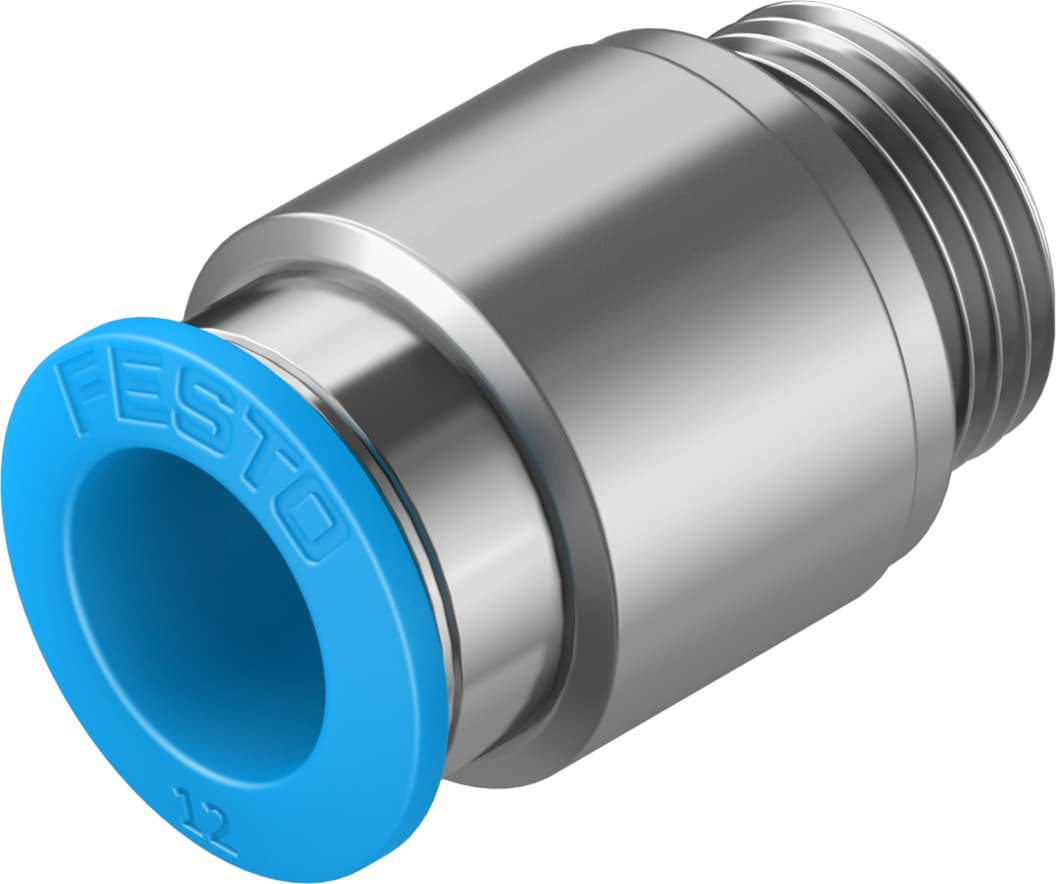

qs-g3/8-12-i
Selling Points
- 1Reliable Connection: The Festo QS-G3/8-12-I push-in fitting ensures a secure and leak-free connection with its sealing ring, ideal for compressed air applications.
- 2Versatile Mounting: This fitting can be mounted in any position, offering flexibility in installation and use.
- 3Standard Size Compatibility: With a nominal size of 8.4 mm, this fitting is compatible with standard tubing sizes, making it easy to integrate into various pneumatic systems.
- 4High Operating Pressure: The QS-G3/8-12-I supports operating pressures up to 6 bar and temperature-dependent pressures up to 14 bar, ensuring robust performance in various environments.
- 5Corrosion Resistance: Classified as CRC 1 (Low corrosion stress), this fitting is suitable for applications where corrosion resistance is crucial, such as in maritime environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 8.4mm |
Type of seal on screwed plug | Sealing ring | Mounting position | Any |
Design | Straight design | Pack size | 10 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible Water: G-thread only possible with sealing ring type OL as additional accessory |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -10°C 80°C | Nominal tightening torque | 15.5Nm |
Tolerance for nominal tightening torque | ± 20% | Product weight | 34g |
Type of mounting | Internal hexagon, AF 8 | Pneumatic connection 1 | External thread G3/8 |
Pneumatic connection 2 | for pneumatic tubing outside diameter 12 mm | Releasing ring color | Blue |
Note on materials | RoHS-compliant | Housing material | Brass, nickel-plated |
Releasing ring material | POM | Material of tubing seal | NBR |
Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 186114 |
Specifications may be subject to change without notice
