Product Model
qs-g3/8-8-50
Selling Points

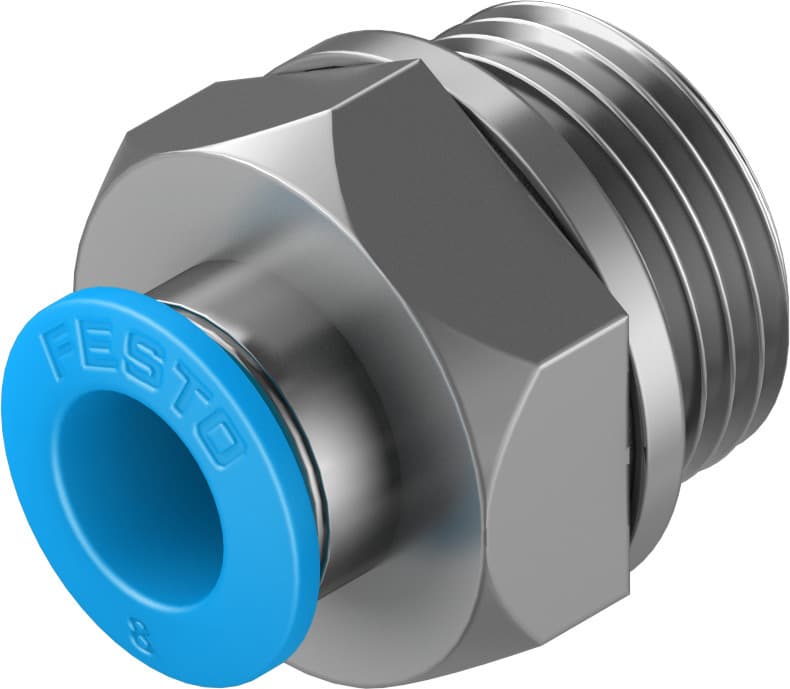

- 1The Festo QS-G3/8-8-50 push-in fitting is designed for easy and secure connections in pneumatic systems, featuring a male thread G3/8 and external hexagon mounting.
- 2This fitting is suitable for compressed air and water (liquid, ice-free) operations, with an operating pressure range of -0.95 to 6 bar and a temperature range of -10°C to 80°C.
- 3The QS-G3/8-8-50 includes a sealing ring for reliable sealing and is compatible with tubing outside diameters of 8 mm, ensuring a tight and leak-free connection.
- 4The fitting is made from high-quality materials, including brass with a nickel-plated housing and a POM releasing ring, ensuring durability and resistance to corrosion.
- 5The Festo QS-G3/8-8-50 push-in fitting is part of the QS standard series, offering a wide range of sizes and configurations to meet various industrial applications, including automation and manufacturing processes.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 7mm |
Type of seal on screwed plug | Sealing ring | Mounting position | Any |
Design | Straight design | Pack size | 50 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible Water: G-thread only possible with sealing ring type OL as additional accessory |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 4 according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
Nominal tightening torque | 15.5Nm | Tolerance for nominal tightening torque | ± 20% |
Product weight | 22g | Type of mounting | External hexagon, AF 19 |
Pneumatic connection 1 | External thread G3/8 | Pneumatic connection 2 | for pneumatic tubing outside diameter 8 mm |
Releasing ring color | Blue | Note on materials | RoHS-compliant |
Housing material | Brass, nickel-plated | Releasing ring material | POM |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 132043 |
Specifications may be subject to change without notice
