Product Model

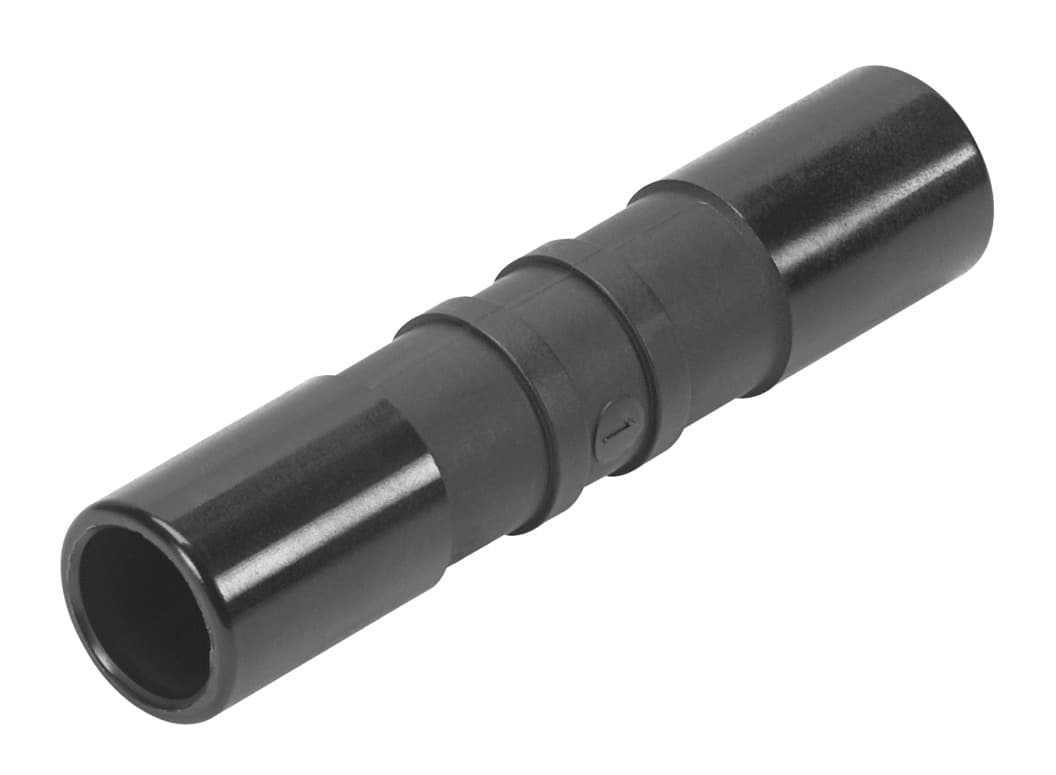

qsh-12-20
Selling Points
- 1The Festo QSH-12-20 push-in sleeve offers a standard nominal size of 9 mm, ensuring compatibility with a wide range of pneumatic systems.
- 2This connector features a straight design and can be mounted in any position, providing flexibility in installation.
- 3The QSH-12-20 operates within a comprehensive temperature range of -10°C to 80°C, making it suitable for diverse environmental conditions.
- 4With a maximum operating pressure of 0.6 MPa (6 bar) and temperature-dependent operating pressures up to 1.4 MPa (14 bar), this connector ensures reliable performance.
- 5The Festo QSH-12-20 is designed for use with compressed air and water (liquid, ice-free) and supports lubricated operation, enhancing its durability and efficiency.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 9mm |
Mounting position | Any | Design | Straight design |
Pack size | 20 | Operating pressure for entire temperature range | -13.775psi 87psi |
Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Statically installed element, no meaningful evaluation possible according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
Product weight | 3g | Pneumatic connection 1 | Push-in sleeve ? 12 mm |
Pneumatic connection 2 | Push-in sleeve ? 12 mm | Releasing ring color | Blue |
Note on materials | RoHS-compliant | Housing material | PBT |
Manufacturer ID | 130727 |
Specifications may be subject to change without notice
