Product Model
qsh-8-50
Selling Points

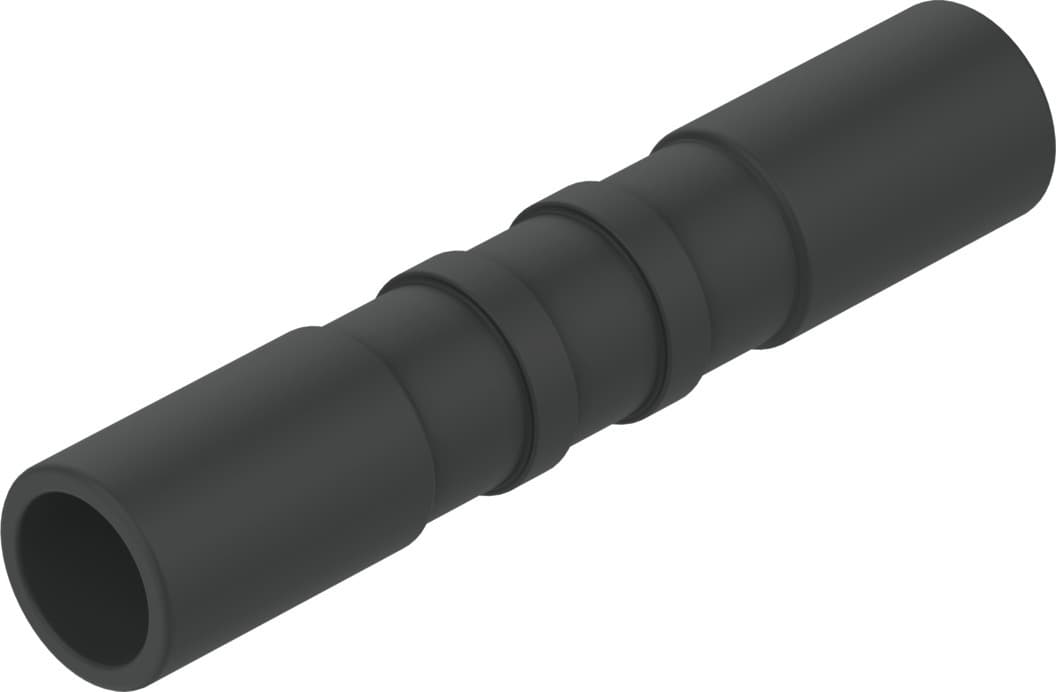

- 1The Festo QSH-8-50 push-in sleeve offers a reliable and secure connection with a nominal size of 6 mm, ensuring consistent performance in various applications.
- 2This push-in sleeve operates at pressures up to 0.6 MPa (6 bar) and 87 psi, making it suitable for a wide range of pneumatic systems.
- 3With a corrosion resistance class of CRC 1, the QSH-8-50 is designed to withstand low corrosion stress, ensuring durability in demanding environments.
- 4The product meets ISO 8573-1:2010 for compressed air and is compatible with water (liquid, ice-free), making it versatile for different operating mediums.
- 5Featuring a straight design and optional mounting position, the QSH-8-50 is easy to install and integrate into existing pneumatic systems, reducing setup time and complexity.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 6mm |
Mounting position | Any | Design | Straight design |
Pack size | 50 | Operating pressure for entire temperature range | -13.775psi 87psi |
Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Statically installed element, no meaningful evaluation possible according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
Product weight | 1g | Pneumatic connection 1 | Push-in sleeve ? 8 mm |
Pneumatic connection 2 | Push-in sleeve ? 8 mm | Releasing ring color | Blue |
Note on materials | RoHS-compliant | Housing material | PBT |
Manufacturer ID | 130725 |
Specifications may be subject to change without notice
