Product Model

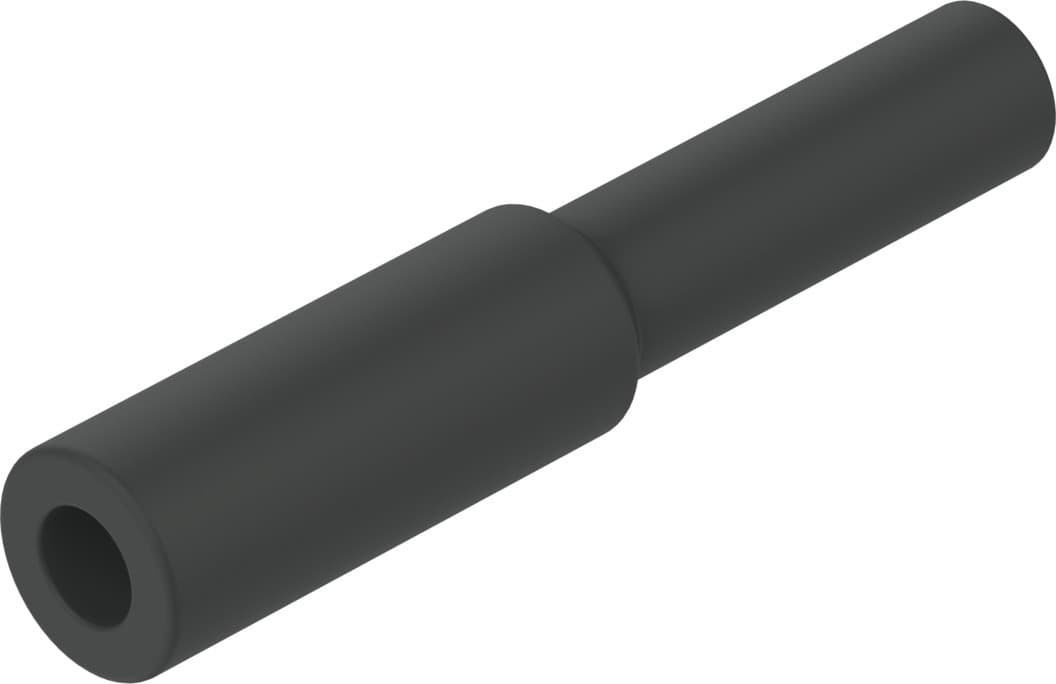

qsh-8-6
Selling Points
- 1Standard Size and Design: The Festo QSH-8-6 push-in sleeve features a standard size of 3.8 mm, ensuring compatibility with most pneumatic systems. Its straight design and push-pull principle make it easy to install and operate.
- 2Operating Pressure Range: This push-in sleeve operates within a comprehensive temperature-dependent pressure range of -0.95 to 14 bar, making it suitable for diverse industrial environments.
- 3Corrosion Resistance: The QSH-8-6 is designed with low corrosion stress, classified as CRC 1, ensuring durability and reliability in various operating conditions.
- 4Versatile Operating Medium: Compatible with compressed air according to ISO 8573-1:2010, as well as water under specific conditions, this sleeve offers flexibility in medium choice.
- 5Material Compliance and Safety: Made from RoHS-compliant PBT material, the QSH-8-6 meets stringent safety standards and is suitable for use in cleanroom environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 3.8mm |
Mounting position | Any | Design | Straight design |
Pack size | 10 | Structural design | Push-pull principle |
Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Statically installed element, no meaningful evaluation possible according to ISO 14644-1 |
Ambient temperature | -10°C 80°C | Product weight | 0.9g |
Pneumatic connection 1 | Push-in sleeve ? 8 mm | Pneumatic connection 2 | Push-in sleeve ? 6 mm |
Releasing ring color | Blue | Note on materials | RoHS-compliant |
Housing material | PBT | Manufacturer ID | 153258 |
Specifications may be subject to change without notice
