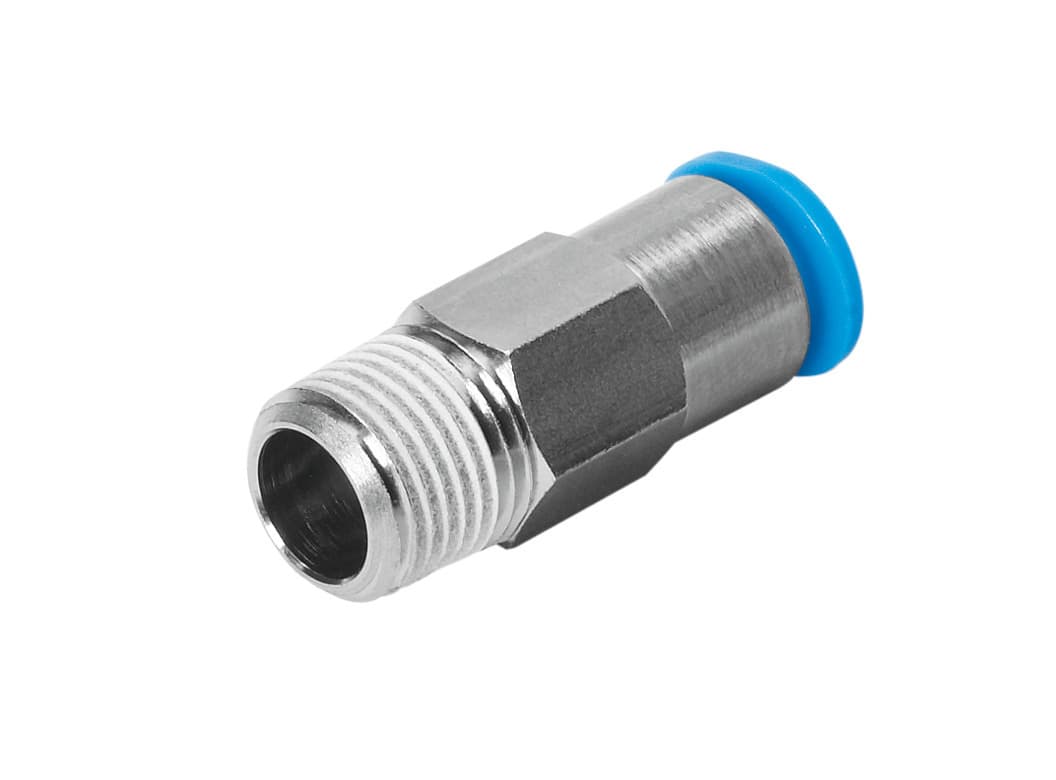

Product Model
qsk-1/4-3/8-u
Selling Points
- 1Self-Sealing Design: Prevents leaks and ensures reliable operation.
- 2External Hex Mounting: Easy installation with a secure external hexagon connection.
- 3Compliant with ISO 8573-1:2010: Meets international standards for compressed air quality.
- 4Low Corrosion Stress: Designed with a corrosion resistance class of 1 for durability.
- 5Wide Operating Pressure Range: Handles pressures from -0.095 MPa to 1 MPa for versatile applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 5.6mm |
Type of seal on screwed plug | Coating | Mounting position | Any |
Design | Straight design | Pack size | 1 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 145psi |
Maritime classification | See certificate | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -10°C 60°C |
Max. tightening torque | 14Nm | Product weight | 36g |
Type of mounting | External hexagon 11/16 | Pneumatic connection 1 | external thread 1/4 NPT |
Pneumatic connection 2 | for pneumatic tubing outside diameter 3/8" | Ambient temperature Fahrenheit | 14°F 140°F |
Releasing ring color | Gray | Note on materials | RoHS-compliant |
Housing material | Brass Nickel-plated | Releasing ring material | POM |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 190714 |
