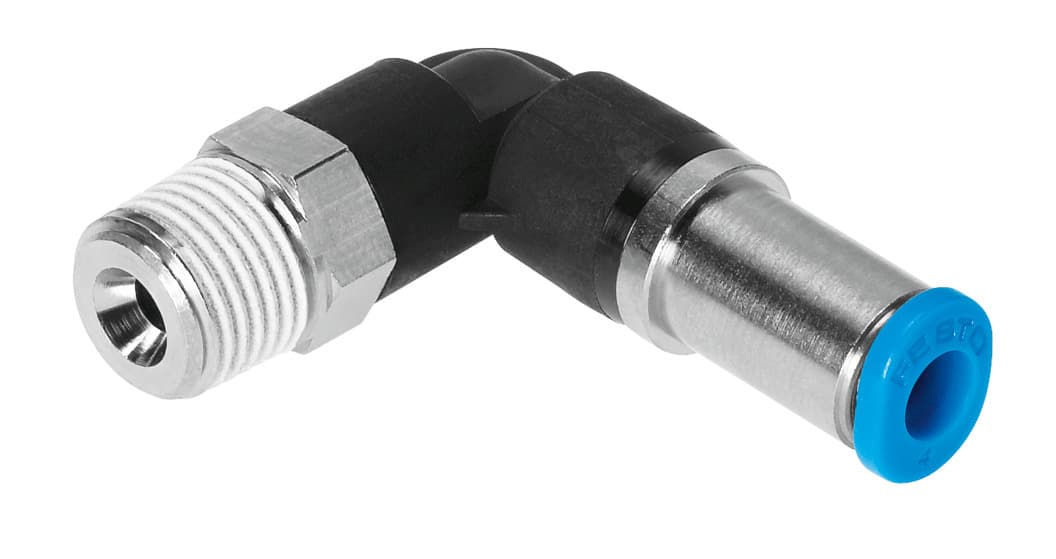

Festo QSKL-1/4-3/8-U Push-in L-Fitting - High-Quality Pneumatic Connector

Selling Points

1The QSKL-1/4-3/8-U is made from nickel-plated brass for the threaded portion and plastic for the body, ensuring durability and resistance to corrosion.
2This L-shape fitting features a push-pull principle and an optional mounting position, making it versatile for various pneumatic applications.
3The fitting supports operating pressures from -0.95 to 10 bar and temperatures from -10 to 80°C, making it suitable for a wide range of pneumatic systems.
4With a simple push-in design, the QSKL-1/4-3/8-U is easy to install and requires minimal effort, reducing setup time and increasing efficiency.
5The fitting is RoHS-compliant and meets VDMA24364-B1/B2-L standards, ensuring compliance with environmental regulations and safety standards.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Size	Standard	Nominal width	5.2mm
Type of seal on screwed plug	Coating	Mounting position	Any
Design	L-shape	Pack size	1
Structural design	Push-pull principle	Operating pressure for entire temperature range	-13.775psi 145psi
Maritime classification	See certificate	Operating medium	Compressed air as per ISO 8573-1:2010 [7:-:-]
Information on operating and pilot media	Operation with oil lubrication possible	Corrosion resistance class (CRC)	1 - Low corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L	Ambient temperature	-10°C 60°C
Max. tightening torque	14Nm	Product weight	36g
Type of mounting	External hexagon 9/16	Pneumatic connection 1	external thread 1/4 NPT
Pneumatic connection 2	for pneumatic tubing outside diameter 3/8"	Ambient temperature Fahrenheit	14°F 140°F
Releasing ring color	Gray	Note on materials	RoHS-compliant
Housing material	PBT	Releasing ring material	POM
Material of tubing seal	NBR	Material of tube retaining claw	High-alloy stainless steel
Manufacturer ID	190747

Specifications may be subject to change without notice
