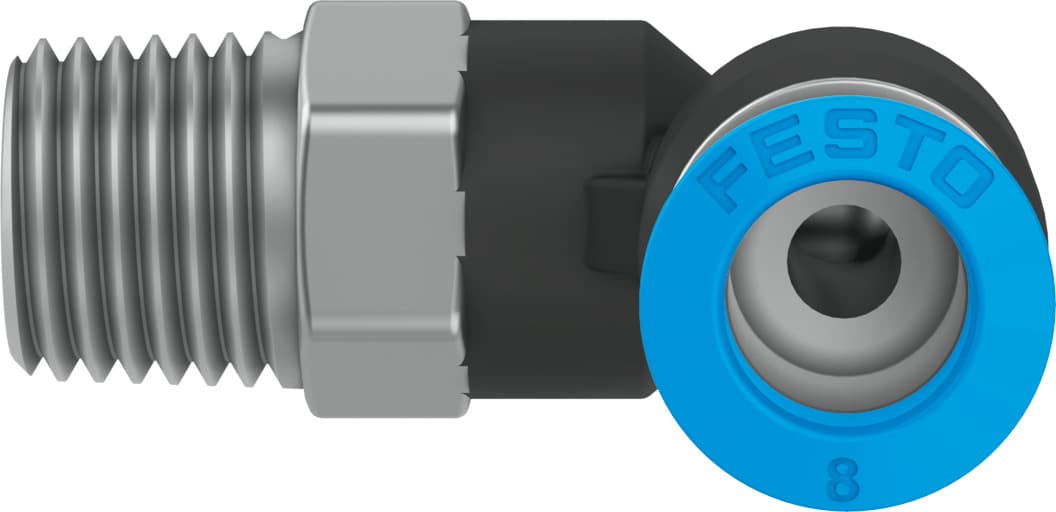

Product Model
qskl-1/4-8
Selling Points
- 1The Festo QSKL-1/4-8 push-in fitting ensures a secure and leak-free connection for compressed air systems, making it ideal for various industrial applications.
- 2This fitting can be installed in any position, offering flexibility in system design and installation.
- 3With a corrosion-resistant class of KBK 1, the QSKL-1/4-8 is suitable for use in environments with low corrosion stress, ensuring long-lasting performance.
- 4The fitting supports operating pressures from -0.95 to 6 bar and temperature-dependent pressures up to 14 bar, making it versatile for different operating conditions.
- 5Constructed from RoHS-compliant materials like PBT housing, POM sleeve, and NBR tube seal, the QSKL-1/4-8 ensures durability and reliability in pneumatic systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 4.1mm |
Approved tubing type | PAN- PAN-MF- PAN-R- PAN-V0- PEN- PFAN- PLN- PTFEN- PUN- PUN-CM- PUN-DUO- PUN-H- PUN-H-DUO- PUN-S- PUN-S-DUO- PUN-V0- | Tubing insertion depth | 18.5mm |
Type of seal on screwed plug | Coating | Mounting position | Any |
Design | L-shape | Pack size | 1 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
Temperature-dependent operating pressure | -13.775psi 203psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -10°C 80°C |
Nominal tightening torque | 9Nm | Tolerance for nominal tightening torque | ± 20% |
Product weight | 27g | Type of mounting | External hexagon, AF 14 |
Pneumatic connection 1 | External thread R1/4 | Pneumatic connection 2 | for pneumatic tubing outside diameter 8 mm |
Releasing ring color | Blue | Material of screwed plug | Brass, nickel-plated |
Note on materials | RoHS-compliant | Housing material | PBT |
Releasing ring material | POM | Material of tubing seal | NBR |
Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 153433 |
Specifications may be subject to change without notice
