Product Model

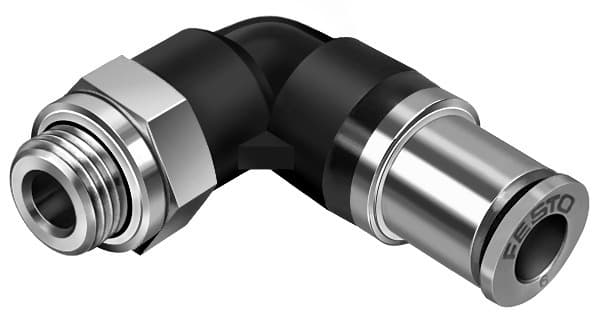

qskl-g1/4-10
Selling Points
- 1The QSKL-G1/4-10 is made from PBT (Polybutylene Terephthalate), ensuring durability and resistance to various operating conditions.
- 2This fitting features a self-locking L design with an outer thread and hexagon, allowing for 360° orientation and easy installation.
- 3The QSKL-G1/4-10 supports operating pressures up to 14 bar and temperatures from -10°C to 80°C, making it versatile for various applications.
- 4Classified as CRC 1 (Low corrosion stress), this fitting is suitable for use in environments where corrosion is a concern.
- 5The QSKL-G1/4-10 is compatible with a variety of flexible tube types, including PAN, PEN, PFAN, and more, ensuring a secure fit for different pneumatic systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 5.2mm |
Approved tubing type | PAN- PAN-MF- PAN-R- PAN-V0- PEN- PFAN- PLN- PTFEN- PUN- PUN-CM- PUN-DUO- PUN-H- PUN-H-DUO- PUN-S- PUN-S-DUO- PUN-V0- | Tubing insertion depth | 20.7mm |
Type of seal on screwed plug | Sealing ring | Mounting position | Any |
Design | L-shape | Pack size | 1 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
Temperature-dependent operating pressure | -13.775psi 203psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -10°C 80°C |
Nominal tightening torque | 9Nm | Tolerance for nominal tightening torque | ± 20% |
Product weight | 31g | Type of mounting | External hexagon, AF 17 |
Pneumatic connection 1 | External thread G1/4 | Pneumatic connection 2 | for pneumatic tubing outside diameter 10 mm |
Releasing ring color | Blue | Material of screwed plug | Brass, nickel-plated |
Note on materials | RoHS-compliant | Housing material | PBT |
Releasing ring material | POM | Material of tubing seal | NBR |
Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 186310 |
Specifications may be subject to change without notice
