Product Model
qskl-g1/4-8
Selling Points

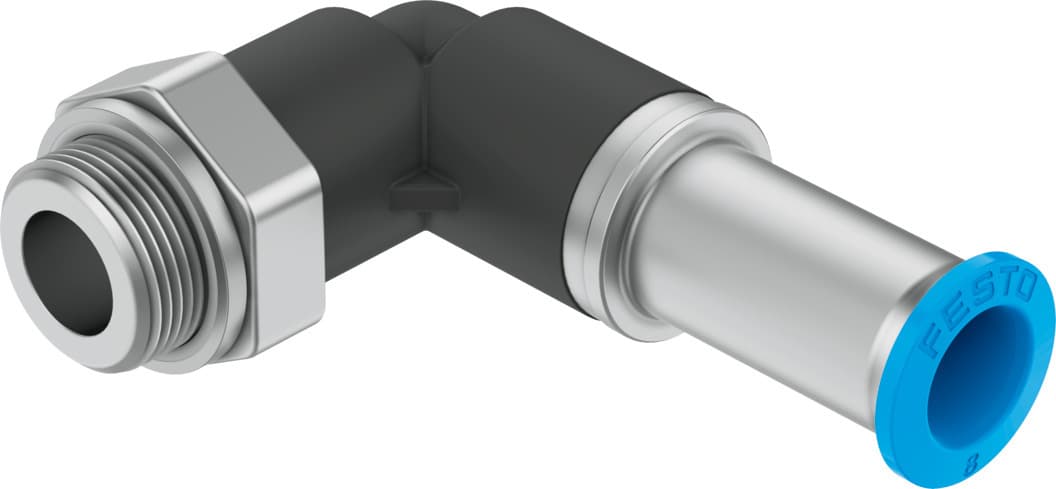

- 1The Festo QSL-G1/4-8 push-in connector is made from high-quality materials, ensuring long-lasting performance in various pneumatic applications.
- 2Featuring a push-to-connect design, this elbow fitting is simple to install and requires minimal effort, making it perfect for quick setup in automation systems.
- 3With a 1/4 inch BSPP (G) male thread and an 8mm PTC metric connection, this elbow fitting is versatile and compatible with a wide range of pneumatic systems.
- 4The QSL-G1/4-8 operates within a temperature range of -10°C to 80°C and supports pressures up to 10 bar, making it suitable for various industrial conditions.
- 5Backed by Festo's reputation for quality and reliability, this push-in connector ensures consistent performance and durability in your pneumatic applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 4.1mm |
Approved tubing type | PAN- PAN-MF- PAN-R- PAN-V0- PEN- PFAN- PLN- PTFEN- PUN- PUN-CM- PUN-DUO- PUN-H- PUN-H-DUO- PUN-S- PUN-S-DUO- PUN-V0- | Tubing insertion depth | 18.3mm |
Type of seal on screwed plug | Sealing ring | Mounting position | Any |
Design | L-shape | Pack size | 1 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
Temperature-dependent operating pressure | -13.775psi 203psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -10°C 80°C |
Nominal tightening torque | 9Nm | Tolerance for nominal tightening torque | ± 20% |
Product weight | 27g | Type of mounting | External hexagon, AF 17 |
Pneumatic connection 1 | External thread G1/4 | Pneumatic connection 2 | for pneumatic tubing outside diameter 8 mm |
Releasing ring color | Blue | Material of screwed plug | Brass, nickel-plated |
Note on materials | RoHS-compliant | Housing material | PBT |
Releasing ring material | POM | Material of tubing seal | NBR |
Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 186308 |
Specifications may be subject to change without notice
