Product Model
qsl-10h-50
Selling Points

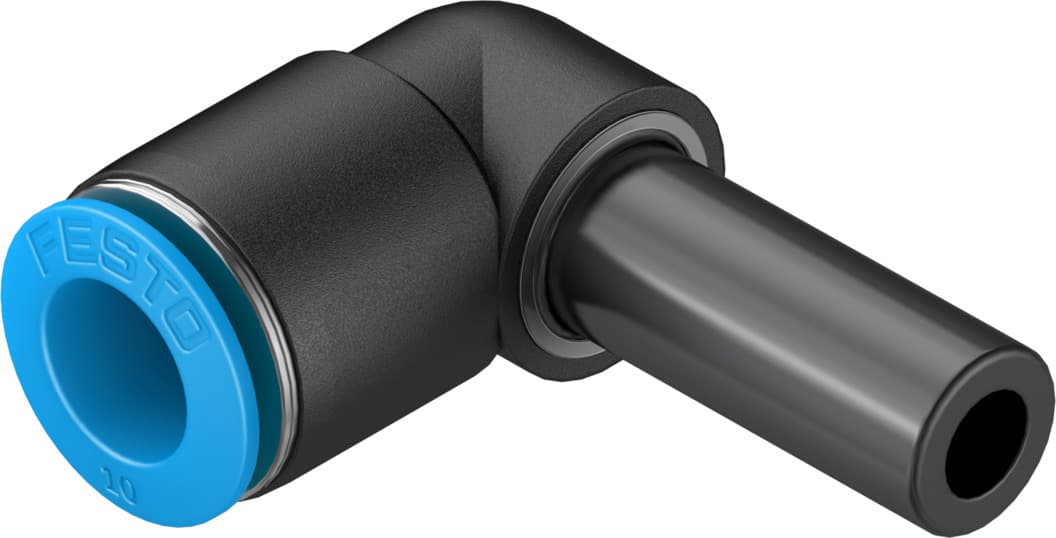

- 1The Festo QSL-10H-50 push-in L-connector features a standard nominal size of 5.7 mm, making it versatile for various pneumatic applications.
- 2With an optional mounting position, this connector offers flexibility in installation, ensuring it can be easily integrated into different systems.
- 3The QSL-10H-50 operates under a push-pull principle, providing a secure and efficient connection method that reduces the risk of leakage and ensures reliable performance.
- 4Designed with an L-shape, this connector offers a compact and space-efficient solution for pneumatic systems, enhancing overall system design and functionality.
- 5The QSL-10H-50 is part of Festo's high-quality pneumatic fittings lineup, ensuring durability and reliability in high-pressure applications across various industries.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 5.7mm |
Mounting position | Any | Design | L-shape |
Pack size | 50 | Structural design | Push-pull principle |
Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 4 according to ISO 14644-1 |
Ambient temperature | -10°C 80°C | Product weight | 9.6g |
Pneumatic connection 1 | Push-in sleeve ? 10 mm | Pneumatic connection 2 | for pneumatic tubing outside diameter 10 mm |
Releasing ring color | Blue | Note on materials | RoHS-compliant |
Housing material | PBT | Releasing ring material | POM |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 130748 |
Specifications may be subject to change without notice
