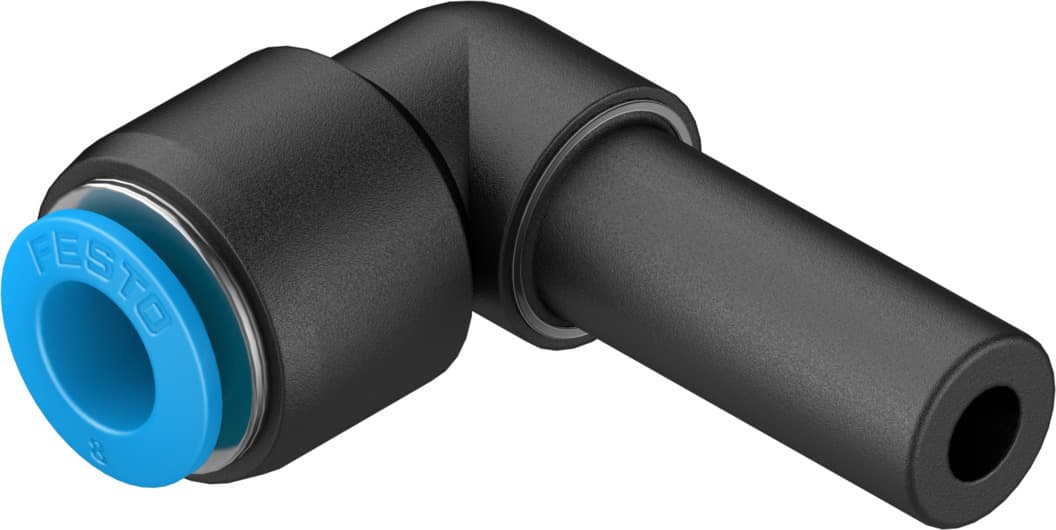

Festo QSL-10H-8 Push-in L-Connector - High-Quality Pneumatic Fittings

Selling Points

1The Festo QSL-10H-8 is a push-in L-connector designed for standard pneumatic applications, featuring a nominal width of 4.9 mm and a push-pull principle for easy assembly.
2This connector operates within a temperature range of -10 °C to 80 °C and supports both compressed air and water as operating mediums, conforming to ISO 8573-1:2010.
3The QSL-10H-8 has a low corrosion stress classification (CRC 1) and is RoHS-compliant, ensuring high reliability and environmental safety.
4It is available in packs of 10 units and supports lubricated operation, making it suitable for various pneumatic systems.
5The product features a blue-colored release ring and is made from PBT housing and POM release ring materials, ensuring durability and performance.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Size	Standard	Nominal width	4.9mm
Mounting position	Any	Design	L-shape
Pack size	10	Structural design	Push-pull principle
Operating pressure for entire temperature range	-13.775psi 87psi	Temperature-dependent operating pressure	-13.775psi 203psi
Information on operating pressure	Water: max. 0.6 MPa at max. 50 °C	Operating medium	Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)
Information on operating and pilot media	Operation with oil lubrication possible	Corrosion resistance class (CRC)	1 - Low corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L	Cleanroom class	Class 4 according to ISO 14644-1
Ambient temperature	-10°C 80°C	Product weight	8g
Pneumatic connection 1	Push-in sleeve ? 10 mm	Pneumatic connection 2	for pneumatic tubing outside diameter 8 mm
Releasing ring color	Blue	Note on materials	RoHS-compliant
Housing material	PBT	Releasing ring material	POM
Material of tubing seal	NBR	Material of tube retaining claw	High-alloy stainless steel
Manufacturer ID	153063

Specifications may be subject to change without notice
