Product Model
qsl-1/2-12
Selling Points

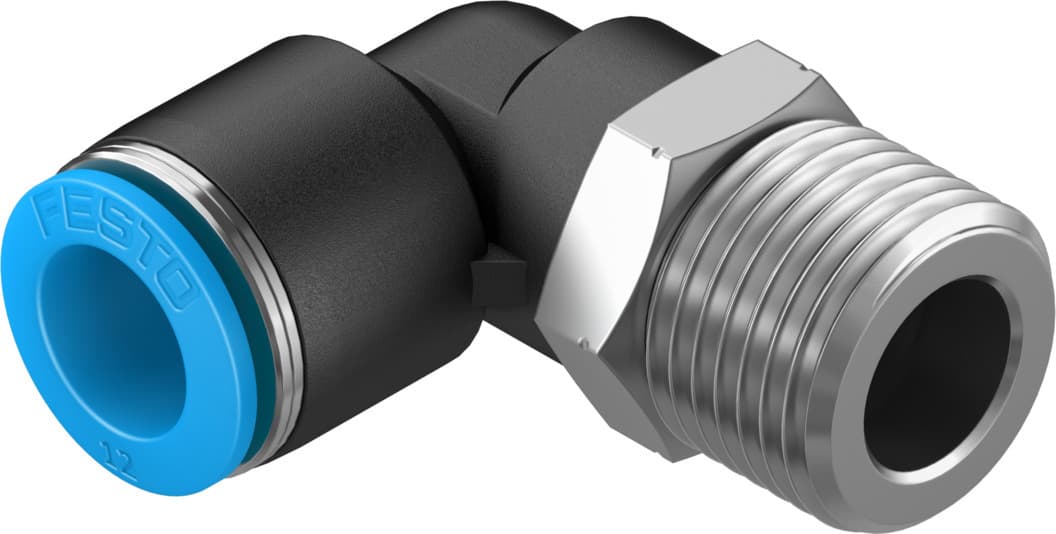

- 1The Festo QSL-1/2-12 push-in L-fitting is designed with a 10.3 mm nominal size, ensuring precise and reliable connections in pneumatic systems.
- 2This fitting features a coating on the screwed plug, enhancing its corrosion resistance and durability, making it suitable for various industrial applications.
- 3The QSL-1/2-12 supports lubricated operation and can handle compressed air according to ISO 8573-1:2010, as well as water under specific conditions.
- 4With a temperature-dependent operating pressure range of -0.95 to 14 bar, this fitting is versatile and can operate effectively in a wide temperature range (-10°C to 80°C).
- 5The QSL-1/2-12 is made from high-quality materials, including nickel-plated brass for the threaded portion and PBT for the housing, ensuring long-lasting performance and compliance with RoHS standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 10.3mm |
Type of seal on screwed plug | Coating | Mounting position | Any |
Design | L-shape | Pack size | 1 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 4 according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
Nominal tightening torque | 26Nm | Tolerance for nominal tightening torque | ± 20% |
Product weight | 61g | Type of mounting | External hexagon, AF 21 |
Pneumatic connection 1 | External thread R1/2 | Pneumatic connection 2 | for pneumatic tubing outside diameter 12 mm |
Releasing ring color | Blue | Material of screwed plug | Brass, nickel-plated |
Note on materials | RoHS-compliant | Housing material | PBT |
Releasing ring material | POM | Material of tubing seal | NBR |
Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 153054 |
