Product Model
qsl-12-20
Selling Points

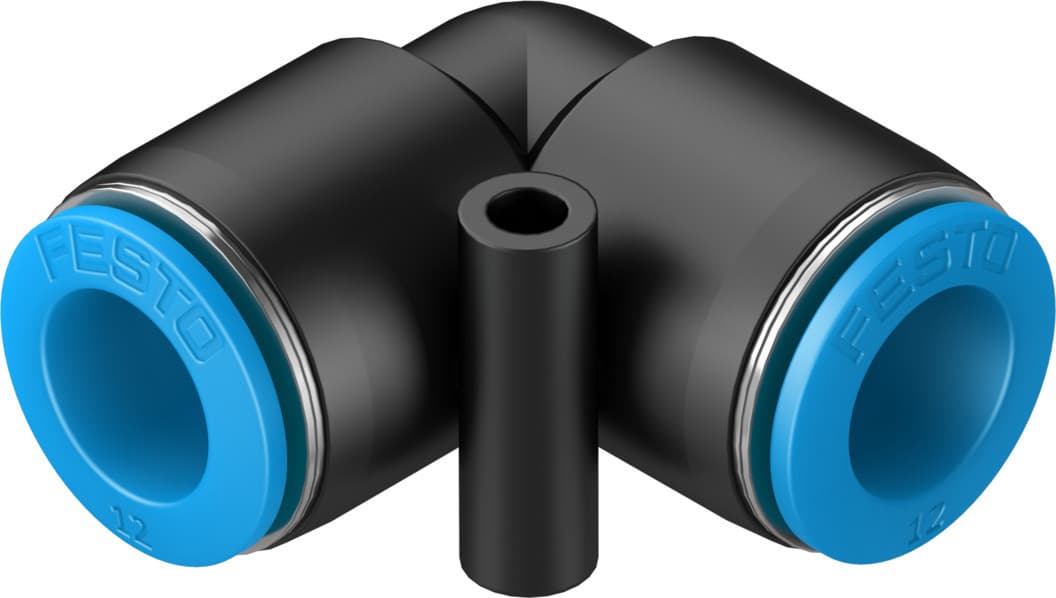

- 1The Festo QSL-12-20 push-in L-connector is designed with a standard size of 7.7 mm, ensuring compatibility with various pneumatic systems.
- 2This connector can be installed in any position, providing flexibility in your setup and maintenance.
- 3Built with a push-pull principle, the QSL-12-20 offers a robust and reliable connection that can withstand operating pressures up to 6 bar.
- 4Classified as low corrosion stress (CRC 1), this connector is suitable for applications where corrosion resistance is crucial.
- 5The QSL-12-20 is RoHS compliant, ensuring it meets environmental standards for hazardous materials.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 10mm |
Mounting position | Any | Design | L-shape |
Pack size | 20 | Structural design | Push-pull principle |
Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 4 according to ISO 14644-1 |
Ambient temperature | -10°C 80°C | Product weight | 25g |
Pneumatic connection 1 | for pneumatic tubing outside diameter 12 mm | Pneumatic connection 2 | for pneumatic tubing outside diameter 12 mm |
Releasing ring color | Blue | Note on materials | RoHS-compliant |
Housing material | PBT | Releasing ring material | POM |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 130744 |
