Product Model
qsl-12h
Selling Points

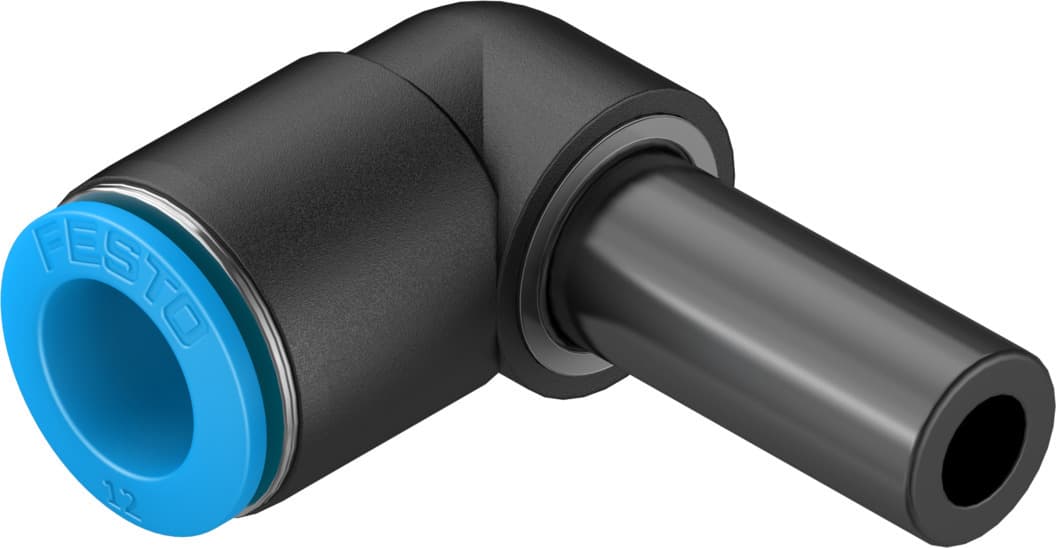

- 1Reliable Pneumatic Connection: The Festo QSL-12H push-in L-connector ensures secure and efficient pneumatic connections, ideal for various industrial applications.
- 2Versatile Design: With a nominal size of 6.8 mm and an L-shape design, this connector offers flexibility in mounting positions, making it suitable for diverse setup configurations.
- 3High Operating Pressure: The QSL-12H supports operating pressures up to 0.6 MPa (6 bar), ensuring robust performance in demanding environments.
- 4Corrosion Resistance: Made from RoHS-compliant materials like PBT and POM, this connector provides low corrosion stress and meets VDMA24364-B1/B2-L standards.
- 5Cleanroom Compatibility: Designed for cleanroom environments (Class 4 according to ISO 14644-1), the QSL-12H ensures high-quality performance in sensitive settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 6.8mm |
Mounting position | Any | Design | L-shape |
Pack size | 10 | Structural design | Push-pull principle |
Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 4 according to ISO 14644-1 |
Ambient temperature | -10°C 80°C | Product weight | 15g |
Pneumatic connection 1 | Push-in sleeve ? 12 mm | Pneumatic connection 2 | for pneumatic tubing outside diameter 12 mm |
Releasing ring color | Blue | Note on materials | RoHS-compliant |
Housing material | PBT | Releasing ring material | POM |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 153060 |
Specifications may be subject to change without notice
