Product Model
qsl-12h-10
Selling Points

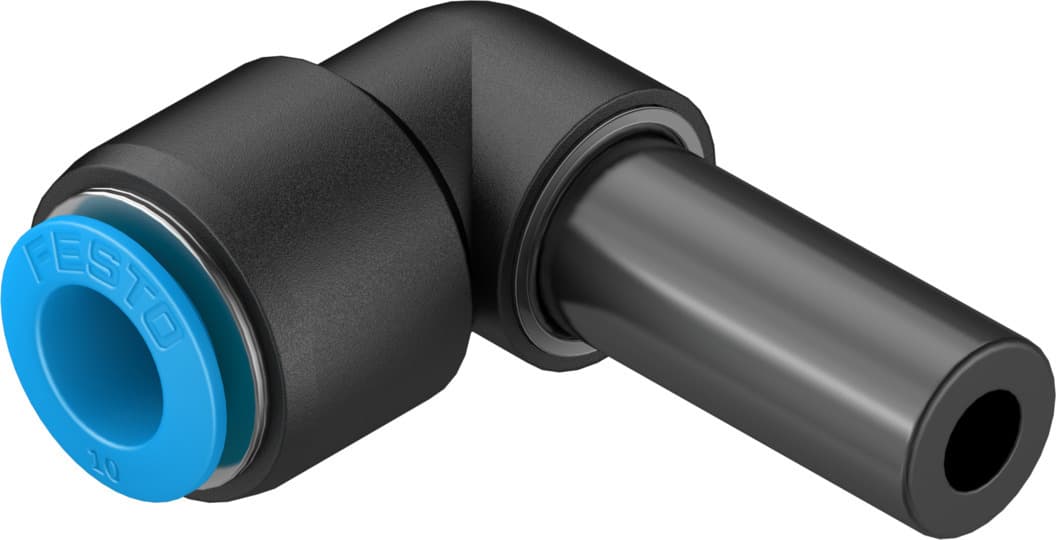

- 1The Festo QSL-12H-10 Push-in L-Connector features a standard size of 6.1 mm nominal width, making it versatile for various pneumatic applications.
- 2This connector boasts an optional mounting position and an L-shape design, allowing for flexible installation in different setups.
- 3With a push-pull principle design, the QSL-12H-10 ensures easy and secure connection and disconnection, reducing the risk of damage or misalignment.
- 4The connector operates within a wide temperature range of -10 °C to 80 °C and supports both compressed air and water as operating media, making it suitable for various industrial environments.
- 5The Festo QSL-12H-10 is designed with low corrosion stress (CRC 1) and meets cleanroom class 4 standards according to ISO 14644-1, ensuring high reliability and cleanliness in critical applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 6.1mm |
Mounting position | Any | Design | L-shape |
Pack size | 10 | Structural design | Push-pull principle |
Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 4 according to ISO 14644-1 |
Ambient temperature | -10°C 80°C | Product weight | 14g |
Pneumatic connection 1 | Push-in sleeve ? 12 mm | Pneumatic connection 2 | for pneumatic tubing outside diameter 10 mm |
Releasing ring color | Blue | Note on materials | RoHS-compliant |
Housing material | PBT | Releasing ring material | POM |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 153064 |
Specifications may be subject to change without notice
