Product Model
qsl-1/4hl-u
Selling Points

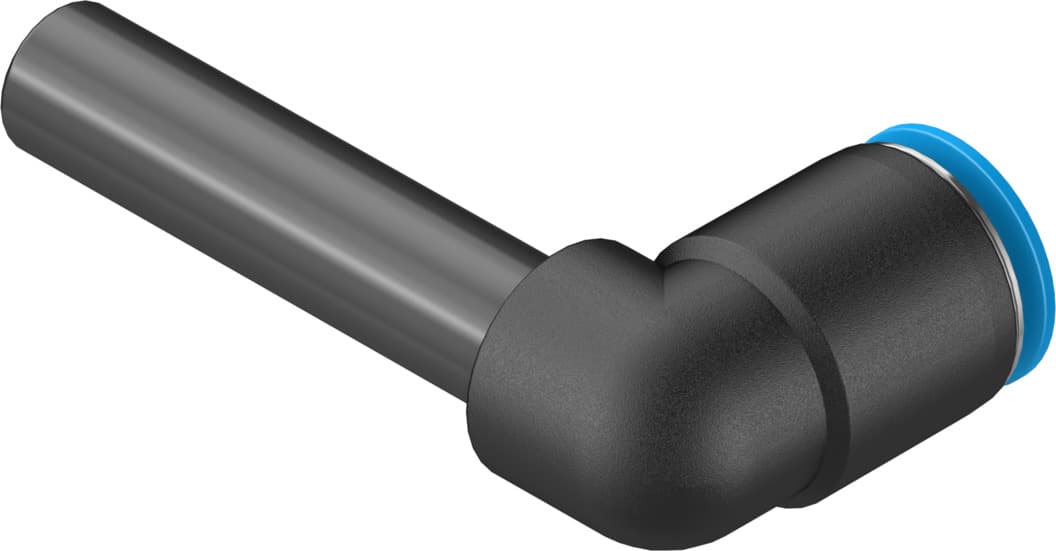

- 1The Festo QSL-1/4HL-U is a reliable push-in L-connector designed for pneumatic systems, ensuring secure and efficient connections.
- 2This connector features a push-pull principle, making it easy to install and remove without the need for tools.
- 3With a nominal width of 3.1 mm and a standard size of 1/4 inch, it fits perfectly into various pneumatic tubing diameters.
- 4The QSL-1/4HL-U operates within a wide temperature range (-10 °C to 60 °C) and supports lubricated operation, enhancing its durability.
- 5Made from RoHS-compliant materials (PBT for housing and POM for the release ring), this connector ensures environmental sustainability and low corrosion stress.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 3.1mm |
Mounting position | Any | Design | L-shape, long |
Pack size | 1 | Structural design | Push-pull principle |
Operating pressure for entire temperature range | -13.775psi 145psi | Maritime classification | See certificate |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -10°C 60°C | Product weight | 4.3g |
Pneumatic connection 1 | Push-in sleeve ? 1/4" | Pneumatic connection 2 | for pneumatic tubing outer diameter 1/4" |
Ambient temperature Fahrenheit | 14°F 140°F | Releasing ring color | Gray |
Note on materials | RoHS-compliant | Housing material | PBT |
Releasing ring material | POM | Material of tubing seal | NBR |
Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 153659 |
Specifications may be subject to change without notice
