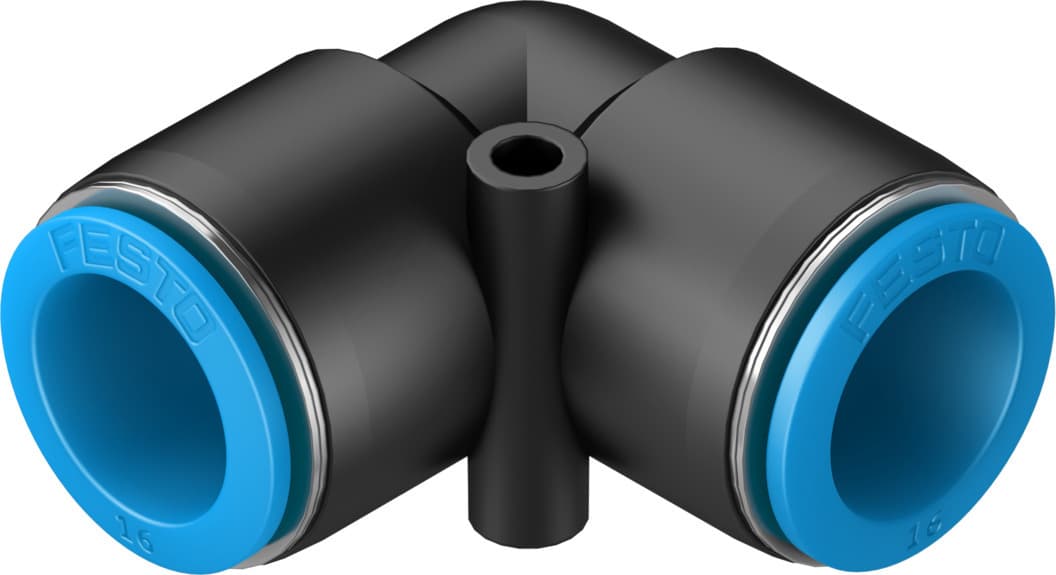

Festo QSL-16 Push-in L-Connector: High-Quality Pneumatic Fittings

Selling Points

1The QSL-16 supports operating pressures up to 6 bar and 14 bar under temperature-dependent conditions, making it suitable for demanding applications.
2This push-in L-connector can be installed in any position, offering flexibility in setup and use.
3Constructed from PBT, POM, and high-alloy stainless steel, the QSL-16 ensures high corrosion resistance and durability.
4The push-pull principle design simplifies installation, reducing the need for specialized tools and minimizing installation time.
5The QSL-16 meets ISO 8573-1:2010 standards for compressed air and is RoHS compliant, ensuring it meets industry standards for safety and environmental responsibility.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Size	Standard	Nominal width	13mm
Mounting position	Any	Design	L-shape
Pack size	1	Structural design	Push-pull principle
Operating pressure for entire temperature range	-13.775psi 87psi	Temperature-dependent operating pressure	-13.775psi 203psi
Information on operating pressure	Water: max. 0.6 MPa at max. 50 °C	Operating medium	Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)
Information on operating and pilot media	Operation with oil lubrication possible	Corrosion resistance class (CRC)	1 - Low corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L	Cleanroom class	Class 4 according to ISO 14644-1
Ambient temperature	-10°C 80°C	Product weight	31g
Pneumatic connection 1	for pneumatic tubing outside diameter 16 mm	Pneumatic connection 2	for pneumatic tubing outside diameter 16 mm
Releasing ring color	Blue	Note on materials	RoHS-compliant
Housing material	PBT	Releasing ring material	POM
Material of tubing seal	NBR	Material of tube retaining claw	High-alloy stainless steel
Manufacturer ID	153075

Specifications may be subject to change without notice
