Product Model
qsl-1/8-8-50
Selling Points

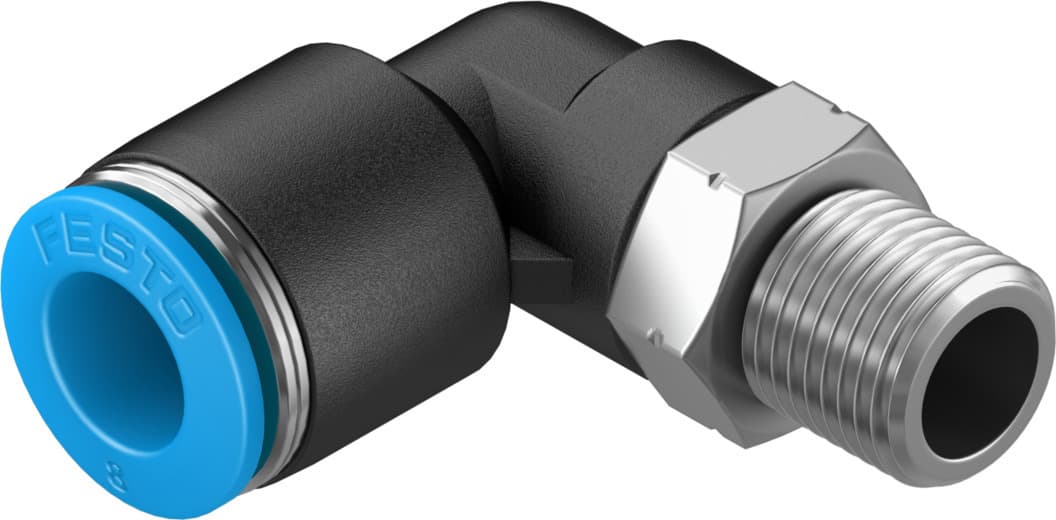

- 1The Festo QSL-1/8-8-50 push-in L-fitting is designed with a nominal width of 6 mm, ensuring precise and secure connections in pneumatic systems.
- 2This fitting features a coating on the screwed plug for enhanced seal quality and durability, making it ideal for various industrial applications.
- 3The QSL-1/8-8-50 supports both compressed air and water as operating mediums, adhering to ISO 8573-1:2010 standards for compressed air and manufacturer's declaration for water.
- 4With a push-pull principle and optional mounting position, this fitting offers flexibility and ease of use in different installation scenarios.
- 5The product is made from RoHS-compliant materials, including PBT for the housing, POM for the sleeve, NBR for the tube seal, and high-alloyed stainless steel for the hose clamping segment, ensuring high corrosion resistance and reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 6mm |
Type of seal on screwed plug | Coating | Mounting position | Any |
Design | L-shape | Pack size | 50 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 4 according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
Nominal tightening torque | 7Nm | Tolerance for nominal tightening torque | ± 20% |
Product weight | 14g | Type of mounting | External hexagon, AF 12 |
Pneumatic connection 1 | External thread R1/8 | Pneumatic connection 2 | for pneumatic tubing outside diameter 8 mm |
Releasing ring color | Blue | Material of screwed plug | Brass, nickel-plated |
Note on materials | RoHS-compliant | Housing material | PBT |
Releasing ring material | POM | Material of tubing seal | NBR |
Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 130730 |
Specifications may be subject to change without notice
