Product Model
qsl-3/8-10-20
Selling Points

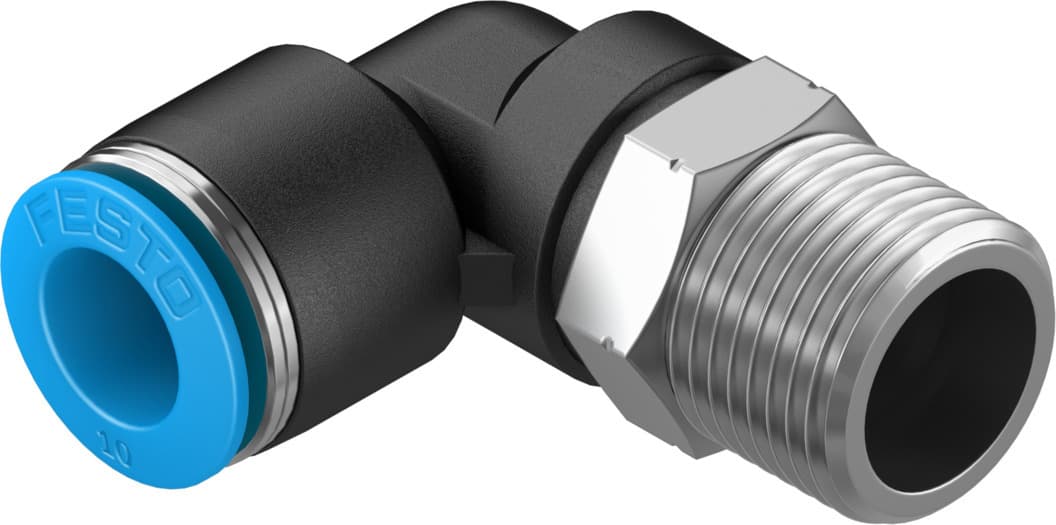

- 1The Festo QSL-3/8-10-20 push-in L-fitting offers a 360° orientable design, ensuring versatile installation in any mounting position.
- 2This high-quality fitting is designed for use with compressed air and water, meeting ISO 8573-1:2010 standards for compressed air and manufacturer's declaration for water.
- 3With a nominal size of 8.3 mm and a standard size, the QSL-3/8-10-20 provides a precise fit for your pneumatic system.
- 4The fitting features a coating on the screwed plug for enhanced sealing and a push-pull principle for easy operation.
- 5The Festo QSL-3/8-10-20 is made from RoHS-compliant materials, including PBT housing, POM sleeve, and NBR tube seal, ensuring durability and environmental compliance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 8.3mm |
Type of seal on screwed plug | Coating | Mounting position | Any |
Design | L-shape | Pack size | 20 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 4 according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
Nominal tightening torque | 15.5Nm | Tolerance for nominal tightening torque | ± 20% |
Product weight | 34g | Type of mounting | External hexagon, AF 17 |
Pneumatic connection 1 | External thread R3/8 | Pneumatic connection 2 | for pneumatic tubing outside diameter 10 mm |
Releasing ring color | Blue | Material of screwed plug | Brass, nickel-plated |
Note on materials | RoHS-compliant | Housing material | PBT |
Releasing ring material | POM | Material of tubing seal | NBR |
Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 130736 |
Specifications may be subject to change without notice
