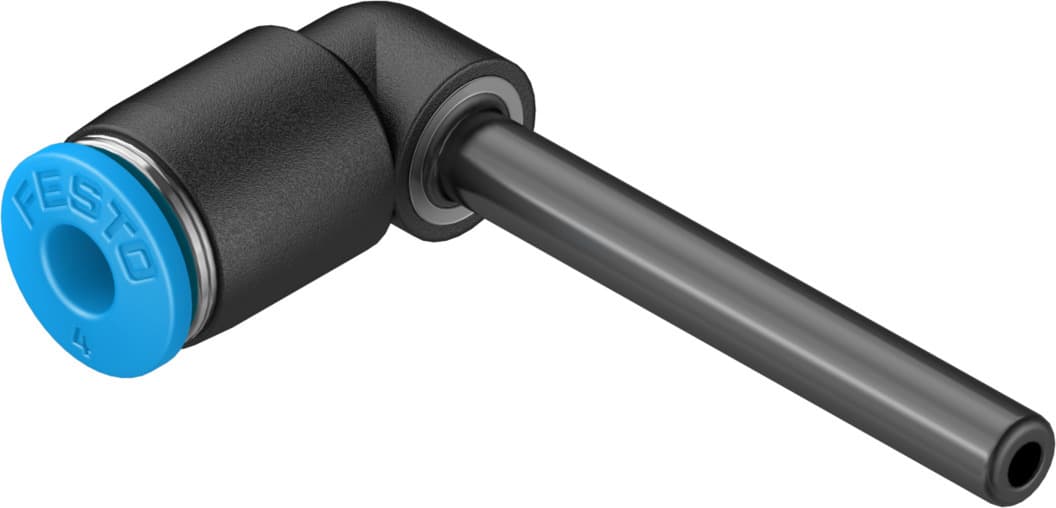

Product Model
qsl-4hl
Selling Points
- 1The Festo QSL-4HL features a push-in fitting system, allowing for quick and simple installation without the need for tools, enhancing efficiency in pneumatic systems.
- 2Made from high-quality PBT thermoplastic and featuring a high-alloy stainless steel retaining claw, this fitting ensures strong and durable connections, reducing the risk of damage or failure.
- 3Suitable for a wide range of pneumatic applications, including compressed air and water, with operating temperatures from -10°C to +80°C and air pressure up to 14 bar.
- 4The QSL-4HL can be mounted in any position, providing maximum flexibility for various industrial setups. Its L-shape design ensures reliable connections in tight spaces.
- 5The fitting conforms to RoHS standards and has LABS (PWIS) conformity with VDMA24364-B1/B2-L, ensuring compliance with industry regulations and standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 2mm |
Mounting position | Any | Design | L-shape, long |
Pack size | 10 | Structural design | Push-pull principle |
Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 4 according to ISO 14644-1 |
Ambient temperature | -10°C 80°C | Product weight | 2.8g |
Pneumatic connection 1 | Push-in sleeve ? 4 mm | Pneumatic connection 2 | for pneumatic tubing outside diameter 4 mm |
Releasing ring color | Blue | Note on materials | RoHS-compliant |
Housing material | PBT | Releasing ring material | POM |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 153065 |
Specifications may be subject to change without notice
