Product Model
qsl-6h-100
Selling Points

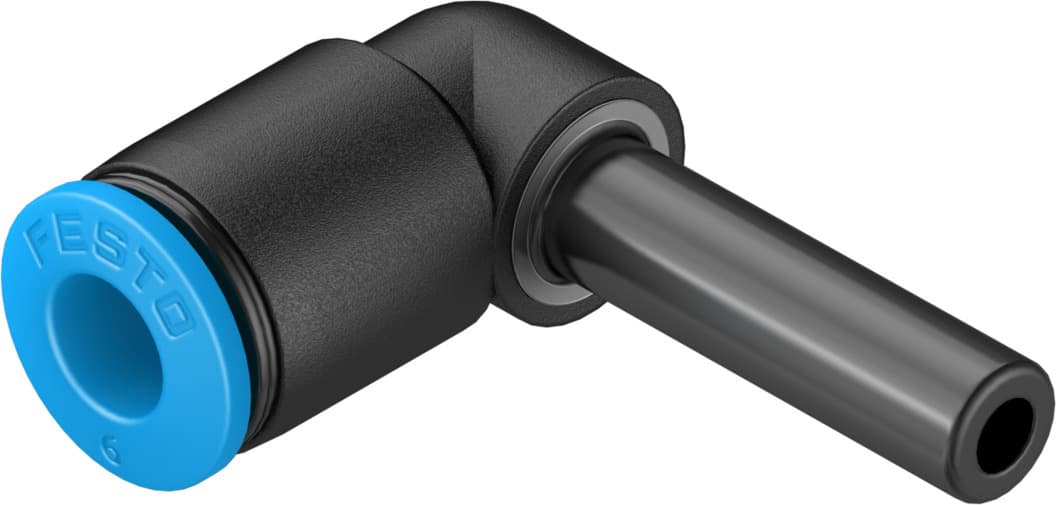

- 1The Festo QSL-6H-100 push-in L-connector features a standard nominal size of 3.2 mm, making it versatile for various pneumatic applications.
- 2This connector operates within a temperature range of -10°C to 80°C and supports operating pressures up to 6 bar, ensuring reliable performance in diverse environments.
- 3The QSL-6H-100 is designed with a push-pull principle, allowing for easy and secure connections without the need for tools, enhancing efficiency in your pneumatic system.
- 4The connector is made from PBT material, which conforms to RoHS standards, ensuring compliance with environmental regulations and durability in use.
- 5The Festo QSL-6H-100 is part of the QS series, known for its high-quality push-in fittings that provide reliable connections in pneumatic systems, reducing the risk of leaks and ensuring smooth operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 3.2mm |
Mounting position | Any | Design | L-shape |
Pack size | 100 | Structural design | Push-pull principle |
Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 4 according to ISO 14644-1 |
Ambient temperature | -10°C 80°C | Product weight | 3.9g |
Pneumatic connection 1 | Push-in sleeve ? 6 mm | Pneumatic connection 2 | for pneumatic tubing outside diameter 6 mm |
Releasing ring color | Blue | Note on materials | RoHS-compliant |
Housing material | PBT | Releasing ring material | POM |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 130746 |
Specifications may be subject to change without notice
