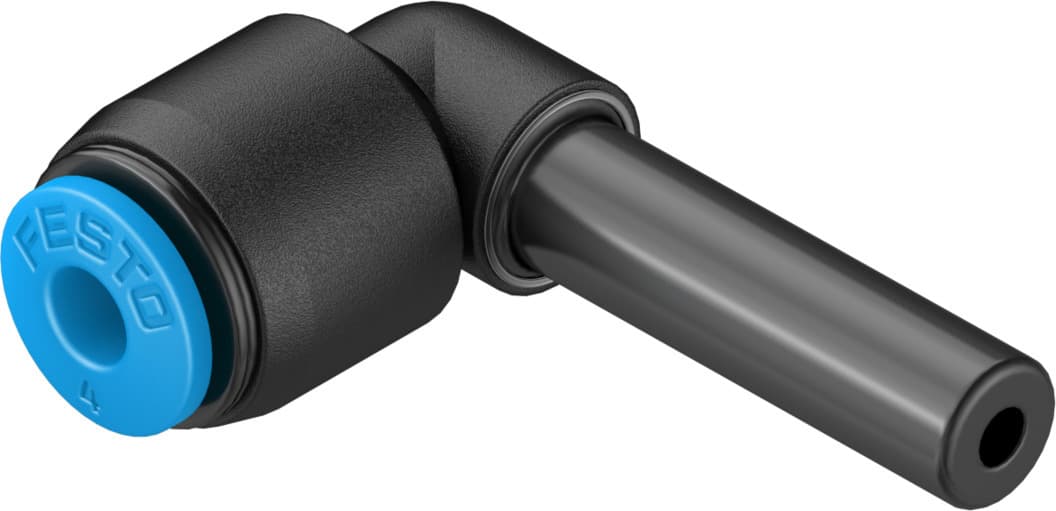

Festo QSL-6H-4 Push-in L-Connector: High-Quality Pneumatic Fittings

Selling Points

1The Festo QSL-6H-4 features a push-pull principle, allowing for quick and simple installation without the need for tools.
2This connector operates effectively within a temperature range of -10°C to 80°C and supports pressures up to 14 bar, making it versatile for various applications.
3With a corrosion resistance class of CRC 1, the QSL-6H-4 is designed to withstand low corrosion stress, ensuring durability in harsh environments.
4The connector meets ISO 8573-1:2010 standards for compressed air and is RoHS-compliant, ensuring it meets environmental regulations.
5Constructed from high-quality materials like PBT for the housing and POM for the release ring, the QSL-6H-4 is strong and durable, suitable for long-term use in pneumatic systems.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Size	Standard	Nominal width	2.4mm
Mounting position	Any	Design	L-shape
Pack size	10	Structural design	Push-pull principle
Operating pressure for entire temperature range	-13.775psi 87psi	Temperature-dependent operating pressure	-13.775psi 203psi
Information on operating pressure	Water: max. 0.6 MPa at max. 50 °C	Operating medium	Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)
Information on operating and pilot media	Operation with oil lubrication possible	Corrosion resistance class (CRC)	1 - Low corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L	Cleanroom class	Class 4 according to ISO 14644-1
Ambient temperature	-10°C 80°C	Product weight	3.6g
Pneumatic connection 1	Push-in sleeve ? 6 mm	Pneumatic connection 2	for pneumatic tubing outside diameter 4 mm
Releasing ring color	Blue	Note on materials	RoHS-compliant
Housing material	PBT	Releasing ring material	POM
Material of tubing seal	NBR	Material of tube retaining claw	High-alloy stainless steel
Manufacturer ID	153061

Specifications may be subject to change without notice
