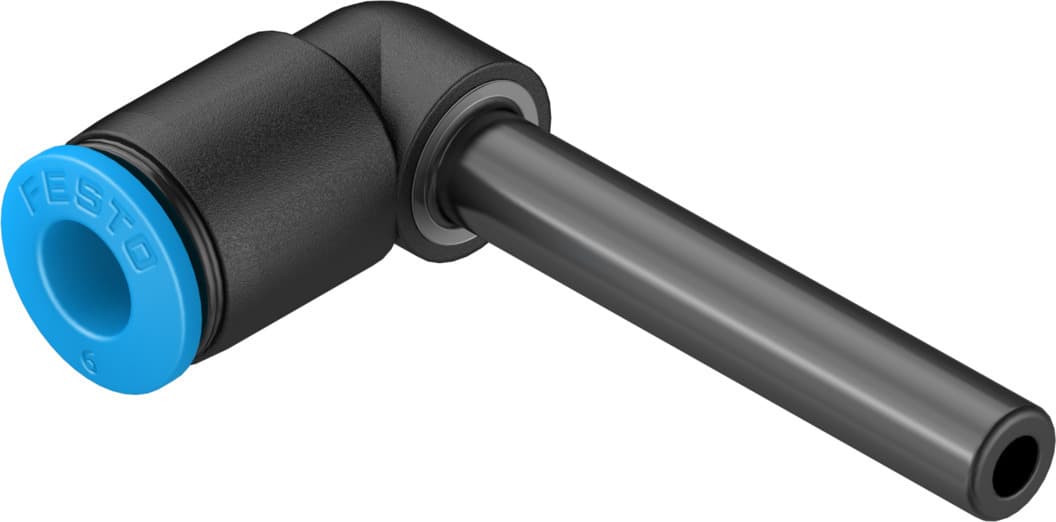

Festo QSL-6HL Push-in L-Connector for Pneumatic Applications

Selling Points

1The Festo QSL-6HL push-in L-connector features a nominal size of 3.1 mm, making it versatile for various pneumatic applications.
2This connector operates within a temperature range of -10°C to 80°C and supports operating pressures from -0.95 to 6 bar, ensuring reliable performance in diverse conditions.
3The QSL-6HL is designed with a push-pull principle, allowing for easy assembly and disassembly without the need for tools.
4It is compatible with compressed air as per ISO 8573-1:2010 and can also operate with water, making it suitable for a wide range of pneumatic systems.
5The connector is made from RoHS-compliant materials, including PBT for the housing and POM for the release ring, ensuring compliance with environmental regulations and durability in use.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Size	Standard	Nominal width	3.1mm
Mounting position	Any	Design	L-shape, long
Pack size	10	Structural design	Push-pull principle
Operating pressure for entire temperature range	-13.775psi 87psi	Temperature-dependent operating pressure	-13.775psi 203psi
Information on operating pressure	Water: max. 0.6 MPa at max. 50 °C	Operating medium	Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)
Information on operating and pilot media	Operation with oil lubrication possible	Corrosion resistance class (CRC)	1 - Low corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L	Cleanroom class	Class 4 according to ISO 14644-1
Ambient temperature	-10°C 80°C	Product weight	4.2g
Pneumatic connection 1	Push-in sleeve ? 6 mm	Pneumatic connection 2	for pneumatic tubing outside diameter 6 mm
Releasing ring color	Blue	Note on materials	RoHS-compliant
Housing material	PBT	Releasing ring material	POM
Material of tubing seal	NBR	Material of tube retaining claw	High-alloy stainless steel
Manufacturer ID	153066
