Product Model
qsl-8-50
Selling Points

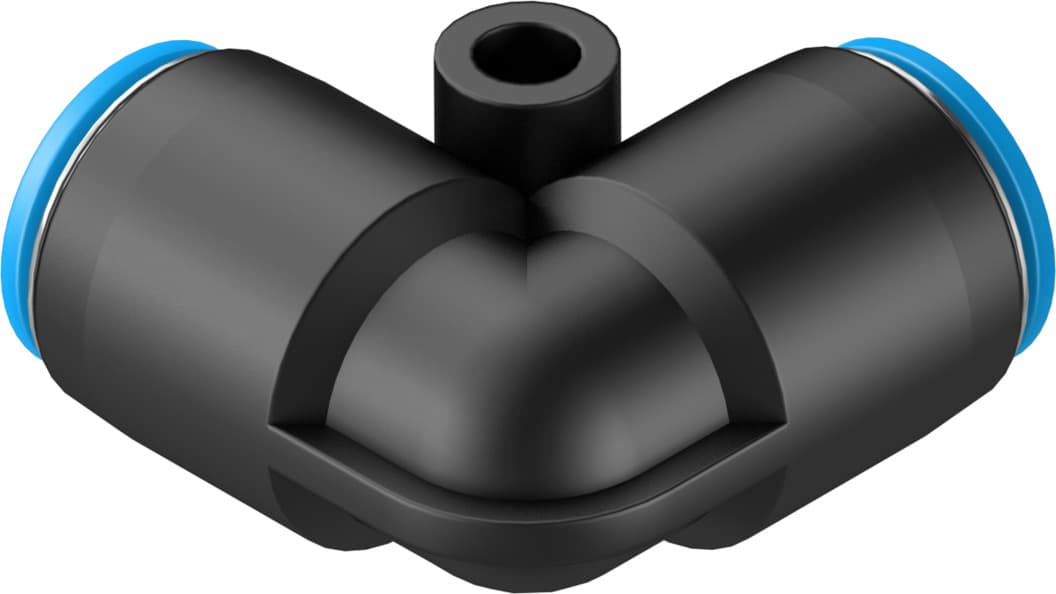

- 1The Festo QSL-8-50 is a versatile pneumatic push-in L-connector designed for easy installation and high flexibility, making it suitable for a wide range of tasks.
- 2This L-shaped elbow fitting features a push-pull design with 1 inlet and 1 outlet, ensuring secure connections and efficient air flow.
- 3The QSL-8-50 operates within a pressure range of -0.95 to 6 bar and up to 14 bar under temperature-dependent conditions, meeting all requirements for standard applications.
- 4Made from high-quality materials including PBT, POM, and NBR, this connector offers excellent corrosion resistance (CRC 1) and is RoHS compliant.
- 5Available in packs of 50 pieces, the QSL-8-50 is ideal for applications involving compressed air and water, with the option for lubricated operation, ensuring maximum flexibility and reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 7.2mm |
Mounting position | Any | Design | L-shape |
Pack size | 50 | Structural design | Push-pull principle |
Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 4 according to ISO 14644-1 |
Ambient temperature | -10°C 80°C | Product weight | 11g |
Pneumatic connection 1 | for pneumatic tubing outside diameter 8 mm | Pneumatic connection 2 | for pneumatic tubing outside diameter 8 mm |
Releasing ring color | Blue | Note on materials | RoHS-compliant |
Housing material | PBT | Releasing ring material | POM |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 130742 |
Specifications may be subject to change without notice
