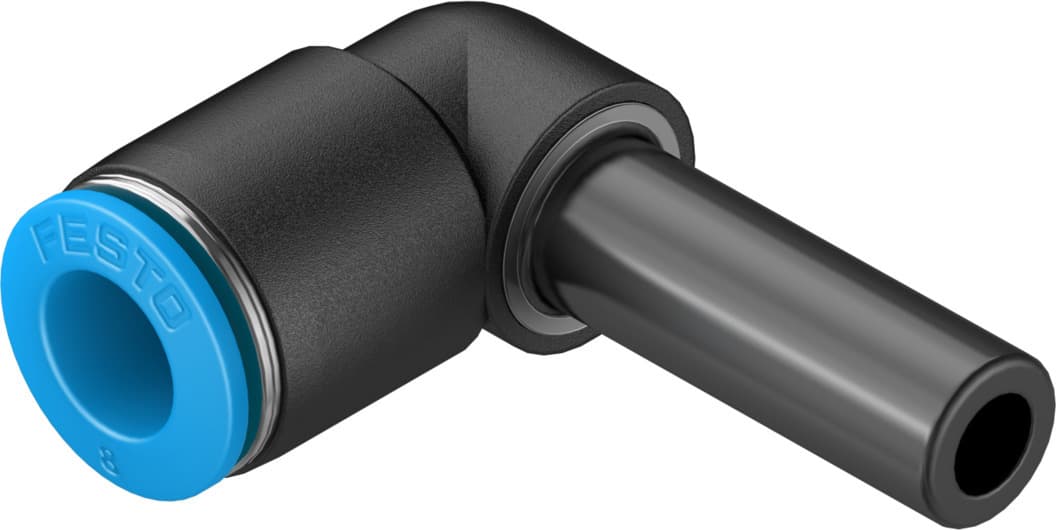

Festo QSL-8H-50 Push-in L-Connector | High-Quality Pneumatic Fittings

Selling Points

1The Festo QSL-8H-50 push-in L-connector features a push-in sleeve and a standard nominal size of 4.7 mm, making it versatile for various assembly positions.
2This fitting operates within a temperature range of -10°C to 80°C and supports pressures up to 6 bar, ensuring reliable performance in diverse environments.
3The QSL-8H-50 is designed with a push/pull principle, allowing for easy installation and operation. It also supports lubricated operation for enhanced durability.
4The connector is made from high-quality materials, including PBT for the body and POM for the release ring, ensuring corrosion resistance and durability.
5Available in a pack of 50 pieces, the Festo QSL-8H-50 is an attractive option for those needing a reliable and cost-effective pneumatic fitting solution.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Size	Standard	Nominal width	4.7mm
Mounting position	Any	Design	L-shape
Pack size	50	Structural design	Push-pull principle
Operating pressure for entire temperature range	-13.775psi 87psi	Temperature-dependent operating pressure	-13.775psi 203psi
Information on operating pressure	Water: max. 0.6 MPa at max. 50 °C	Operating medium	Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)
Information on operating and pilot media	Operation with oil lubrication possible	Corrosion resistance class (CRC)	1 - Low corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L	Cleanroom class	Class 4 according to ISO 14644-1
Ambient temperature	-10°C 80°C	Product weight	5.7g
Pneumatic connection 1	Push-in sleeve ? 8 mm	Pneumatic connection 2	for pneumatic tubing outside diameter 8 mm
Releasing ring color	Blue	Note on materials	RoHS-compliant
Housing material	PBT	Releasing ring material	POM
Material of tubing seal	NBR	Material of tube retaining claw	High-alloy stainless steel
Manufacturer ID	130747

Specifications may be subject to change without notice
