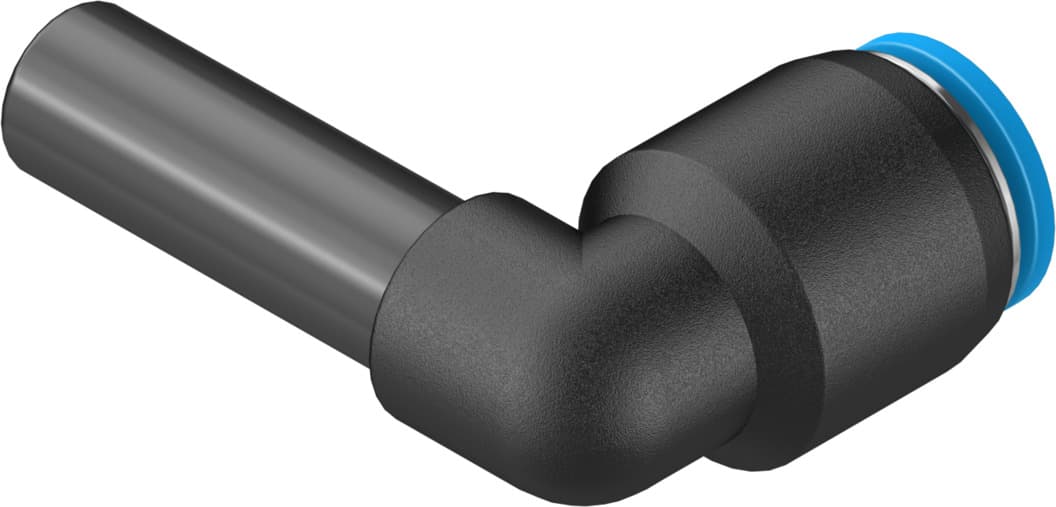

Festo QSL-8H-6 Push-in L-Connector for Pneumatic Applications

Selling Points

1The Festo QSL-8H-6 push-in L-connector offers a reliable and effortless push-in installation, making it perfect for quick and simple pneumatic connections.
2With a nominal size of 3.5 mm and a push-pull principle design, this connector provides maximum flexibility in various pneumatic applications.
3The QSL-8H-6 operates within a wide temperature range of -10°C to +80°C and supports air pressures up to 14 bar, ensuring durability in diverse environments.
4Made from high-quality materials including PBT housing, POM release ring, and NBR tubing seal, this connector is RoHS-compliant and resistant to corrosion.
5Designed for use with compressed air according to ISO 8573-1:2010 and water as per manufacturer's declaration, this connector is suitable for both pneumatic and hydraulic applications.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Size	Standard	Nominal width	3.5mm
Mounting position	Any	Design	L-shape
Pack size	10	Structural design	Push-pull principle
Operating pressure for entire temperature range	-13.775psi 87psi	Temperature-dependent operating pressure	-13.775psi 203psi
Information on operating pressure	Water: max. 0.6 MPa at max. 50 °C	Operating medium	Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)
Information on operating and pilot media	Operation with oil lubrication possible	Corrosion resistance class (CRC)	1 - Low corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L	Cleanroom class	Class 4 according to ISO 14644-1
Ambient temperature	-10°C 80°C	Product weight	5.2g
Pneumatic connection 1	Push-in sleeve ? 8 mm	Pneumatic connection 2	for pneumatic tubing outside diameter 6 mm
Releasing ring color	Blue	Note on materials	RoHS-compliant
Housing material	PBT	Releasing ring material	POM
Material of tubing seal	NBR	Material of tube retaining claw	High-alloy stainless steel
Manufacturer ID	153062

Specifications may be subject to change without notice
