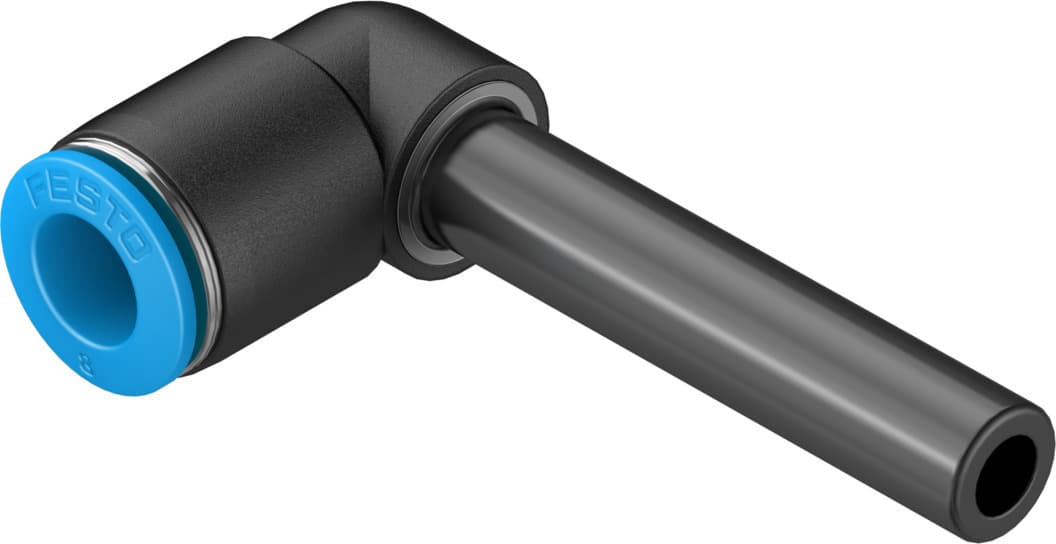

Festo QSL-8HL Push-in L-Connector | High-Quality Pneumatic Fittings

Selling Points

1The Festo QSL-8HL push-in L-connector is designed for pneumatic applications, offering a temperature range of up to 80°C and an operating pressure of up to 14 bar.
2This L-connector features a push-pull principle, making it easy to assemble and disassemble, ensuring quick and efficient connections.
3The QSL-8HL is compatible with compressed air and lubricated operation, providing reliable performance in various industrial settings.
4Made from high-quality materials, including PBT for the housing and POM for the release ring, this connector conforms to RoHS regulations.
5Available in a standard size with a nominal width of 4.5 mm, this push-in fitting is versatile and can be mounted in any position, making it suitable for various applications.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Size	Standard	Nominal width	4.5mm
Mounting position	Any	Design	L-shape, long
Pack size	10	Structural design	Push-pull principle
Operating pressure for entire temperature range	-13.775psi 87psi	Temperature-dependent operating pressure	-13.775psi 203psi
Information on operating pressure	Water: max. 0.6 MPa at max. 50 °C	Operating medium	Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)
Information on operating and pilot media	Operation with oil lubrication possible	Corrosion resistance class (CRC)	1 - Low corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L	Cleanroom class	Class 4 according to ISO 14644-1
Ambient temperature	-10°C 80°C	Product weight	6.2g
Pneumatic connection 1	Push-in sleeve ? 8 mm	Pneumatic connection 2	for pneumatic tubing outside diameter 8 mm
Releasing ring color	Blue	Note on materials	RoHS-compliant
Housing material	PBT	Releasing ring material	POM
Material of tubing seal	NBR	Material of tube retaining claw	High-alloy stainless steel
Manufacturer ID	153067

Specifications may be subject to change without notice
