Product Model

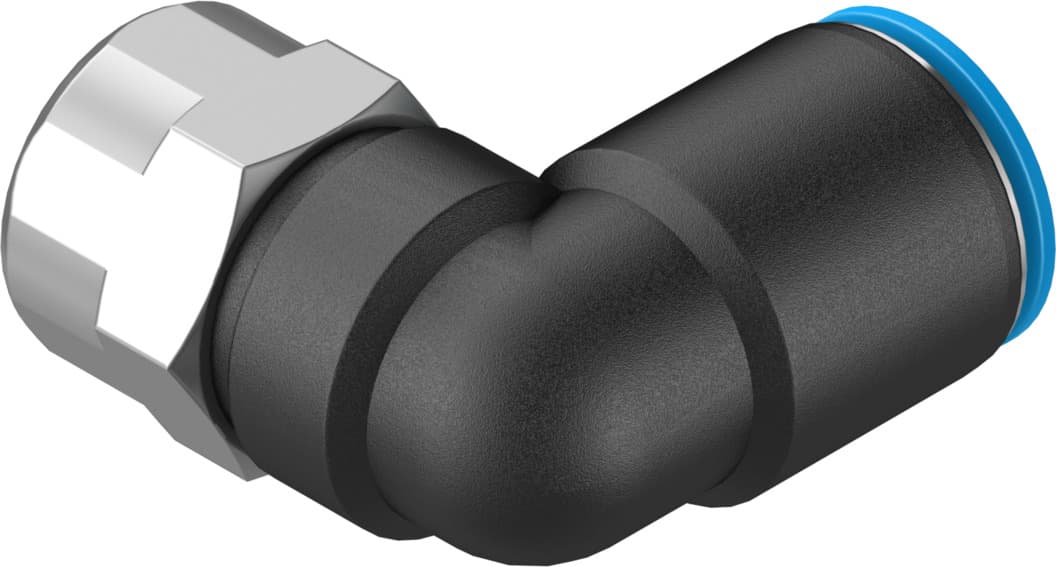

qslf-1/4-10-b
Selling Points
- 1Reliable Pneumatic Connection: The QSLF-1/4-10-B features a push-pull principle for easy installation and secure connections.
- 2Wide Operating Range: Operates from -0.95 to 6 bar with temperature-dependent pressure up to 14 bar, ensuring versatility in different environments.
- 3Corrosion Resistance: Classified as CRC 1, this fitting offers low corrosion stress, making it suitable for harsh industrial conditions.
- 4Versatile Operating Mediums: Compatible with compressed air (ISO 8573-1:2010) and water, as per manufacturer's declaration at www.festo.com.
- 5Durable Construction: Made from RoHS-compliant materials like PBT, POM, and NBR, ensuring durability and long-lasting performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 8mm |
Mounting position | Any | Design | L-shape |
Pack size | 10 | Structural design | Push-pull principle |
Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 4 according to ISO 14644-1 |
Ambient temperature | -10°C 80°C | Nominal tightening torque | 9Nm |
Tolerance for nominal tightening torque | ± 20% | Product weight | 27g |
Type of mounting | External hexagon, AF 17 | Pneumatic connection 1 | Internal thread G1/4 |
Pneumatic connection 2 | for pneumatic tubing outside diameter 10 mm | Releasing ring color | Blue |
Material of screwed plug | Brass, nickel-plated | Note on materials | RoHS-compliant |
Housing material | PBT | Releasing ring material | POM |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 153279 |
Specifications may be subject to change without notice
