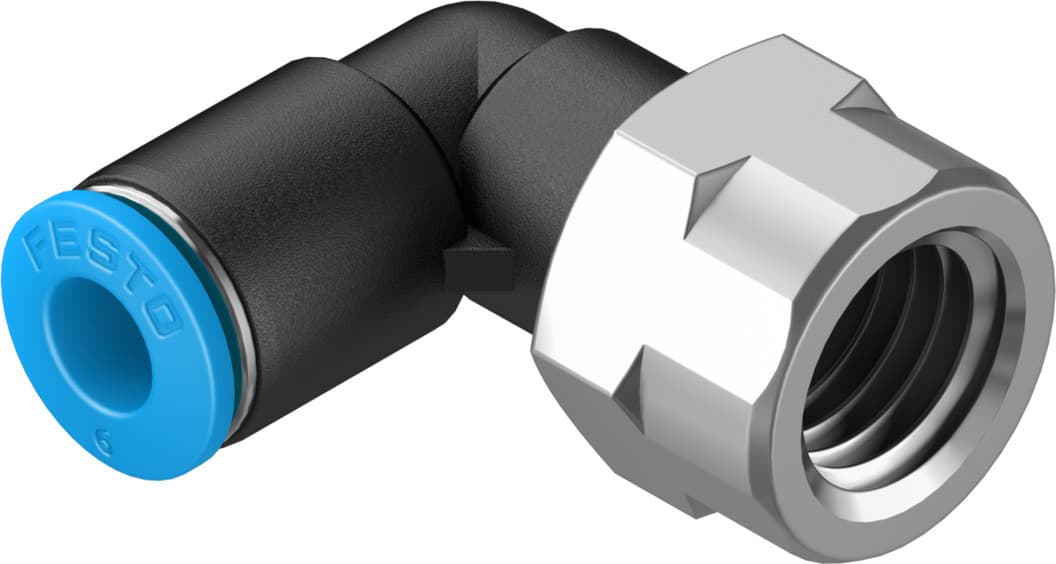

Product Model
qslf-1/4-6-b
Selling Points
- 1The Festo QSLF-1/4-6-B push-in L-fitting is designed with a push/pull principle, ensuring easy and secure connections for pneumatic tubing with an outer diameter of 6 mm.
- 2This fitting features a female thread G1/4 and is compatible with compressed air according to ISO 8573-1:2010, as well as water as per manufacturer's declaration.
- 3The QSLF-1/4-6-B has a low corrosion resistance class (CRC 1) and is made from RoHS-compliant materials, including PBT for the housing and POM for the release ring.
- 4It operates within a temperature range of -10°C to 80°C and supports a maximum operating pressure of 6 bar, with temperature-dependent operating pressure up to 14 bar.
- 5The push-in L-fitting is lightweight, weighing only 22 grams, and includes a blue-colored release ring for easy identification.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 4.3mm |
Mounting position | Any | Design | L-shape |
Pack size | 10 | Structural design | Push-pull principle |
Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 4 according to ISO 14644-1 |
Ambient temperature | -10°C 80°C | Nominal tightening torque | 9Nm |
Tolerance for nominal tightening torque | ± 20% | Product weight | 22g |
Type of mounting | External hexagon, AF 17 | Pneumatic connection 1 | Internal thread G1/4 |
Pneumatic connection 2 | for pneumatic tubing outside diameter 6 mm | Releasing ring color | Blue |
Material of screwed plug | Brass, nickel-plated | Note on materials | RoHS-compliant |
Housing material | PBT | Releasing ring material | POM |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 153275 |
Specifications may be subject to change without notice
