Product Model
qslf-1/8-4-b
Selling Points

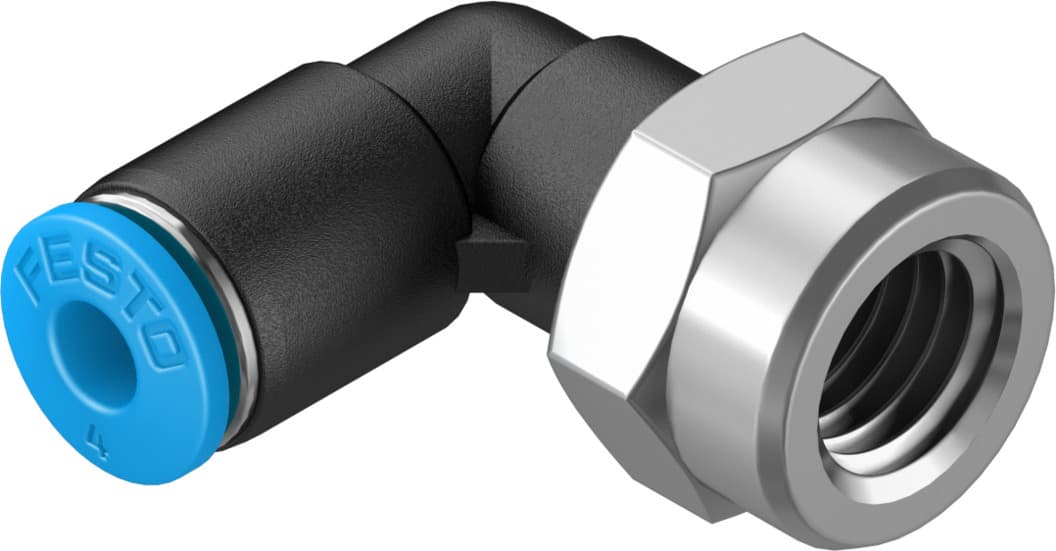

- 1The Festo QSLF-1/8-4-B push-in L-fitting ensures secure and reliable connections for compressed air and water, making it ideal for various industrial applications.
- 2This fitting is 360° orientable, allowing for any mounting position, which enhances its versatility and ease of use in different setups.
- 3The QSLF-1/8-4-B supports operating pressures from -0.95 to 6 bar for the entire temperature range and up to 14 bar with temperature-dependent pressure, ensuring it can handle various operational conditions.
- 4With a corrosion resistance class of 1 (low corrosion stress), this fitting is designed to withstand harsh environments, making it suitable for applications in cleanrooms and other demanding settings.
- 5Constructed from RoHS-compliant materials like PBT for the housing and POM for the release ring, along with NBR for tubing seals and high-alloy stainless steel for tube retaining claws, this fitting ensures durability and reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 2.8mm |
Mounting position | Any | Design | L-shape |
Pack size | 10 | Structural design | Push-pull principle |
Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 4 according to ISO 14644-1 |
Ambient temperature | -10°C 80°C | Nominal tightening torque | 7Nm |
Tolerance for nominal tightening torque | ± 20% | Product weight | 14g |
Type of mounting | External hexagon, AF 14 | Pneumatic connection 1 | Internal thread G1/8 |
Pneumatic connection 2 | for pneumatic tubing outside diameter 4 mm | Releasing ring color | Blue |
Material of screwed plug | Brass, nickel-plated | Note on materials | RoHS-compliant |
Housing material | PBT | Releasing ring material | POM |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 153273 |
Specifications may be subject to change without notice
