Product Model
qslf-1/8-6-b
Selling Points

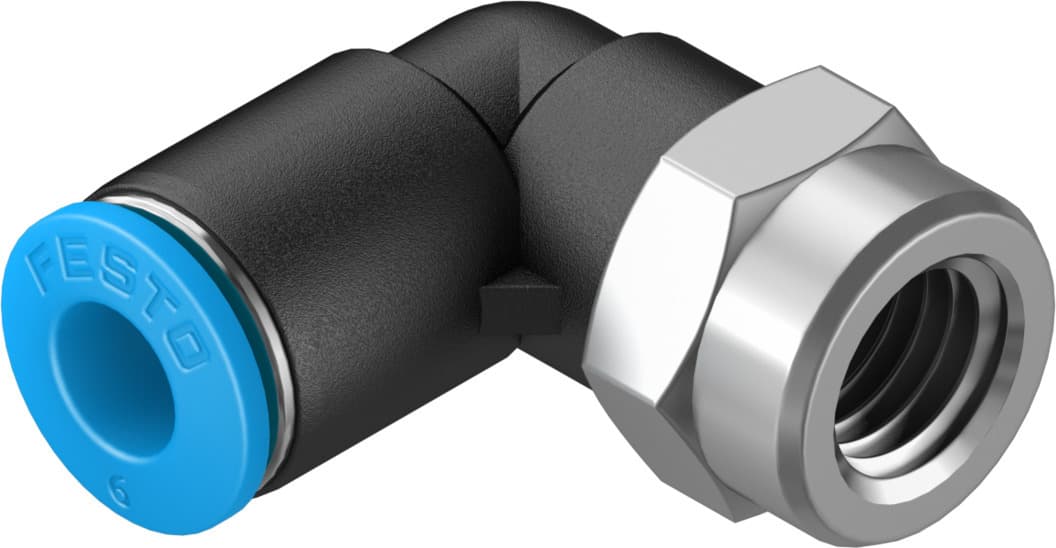

- 1The Festo QSLF-1/8-6-B push-in L-fitting is designed with a push-pull principle, ensuring easy and secure connections. It features a 360° orientable design and an internal thread with an external hexagon for versatile mounting options.
- 2This high-quality connector is made from RoHS-compliant materials, including PBT for the housing and POM for the release ring. It also supports lubricated operation and is compatible with compressed air and water.
- 3The QSLF-1/8-6-B operates within a temperature range of -10°C to 80°C and supports operating pressures from -0.95 to 6 bar. It is also suitable for maritime applications, with a maritime classification available upon request.
- 4The connector's corrosion resistance is classified as CRC 1, indicating low corrosion stress. It is also cleanroom class 4 according to ISO 14644-1, making it suitable for various industrial environments.
- 5The Festo QSLF-1/8-6-B push-in L-fitting is available in packs of 10 pieces and weighs 15 grams each. It is part of the QSLF series, known for its reliability and durability in pneumatic systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 4.2mm |
Mounting position | Any | Design | L-shape |
Pack size | 10 | Structural design | Push-pull principle |
Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 4 according to ISO 14644-1 |
Ambient temperature | -10°C 80°C | Nominal tightening torque | 7Nm |
Tolerance for nominal tightening torque | ± 20% | Product weight | 15g |
Type of mounting | External hexagon, AF 14 | Pneumatic connection 1 | Internal thread G1/8 |
Pneumatic connection 2 | for pneumatic tubing outside diameter 6 mm | Releasing ring color | Blue |
Material of screwed plug | Brass, nickel-plated | Note on materials | RoHS-compliant |
Housing material | PBT | Releasing ring material | POM |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 153274 |
Specifications may be subject to change without notice
